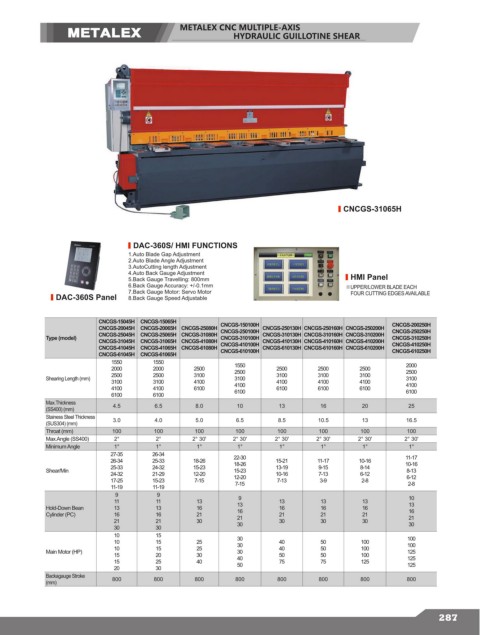

METALEX CNC MULTIPLE-AXIS
HYDRAULIC GUILLOTINE SHEAR

CNCGS-31065H

DAC-360S/ HMI FUNCTIONS
1.Auto Blade Gap Adjustment
2.Auto Blade Angle Adjustment
3.AutoCutting length Adjustment
4.Auto Back Gauge Adjustment HMI Panel
5.Back Gauge Travelling: 800mm
6.Back Gauge Accuracy: +/-0.1mm ※UPPER/LOWER BLADE EACH
7.Back Gauge Motor: Servo Motor FOUR CUTTING EDGES AVAILABLE
DAC-360S Panel 8.Back Gauge Speed Adjustable

CNCGS-15045H CNCGS-15065H CNCGS-150100H CNCGS-200250H
CNCGS-20045H CNCGS-20065H CNCGS-25080H CNCGS-250100H CNCGS-250130H CNCGS-250160H CNCGS-250200H CNCGS-250250H
CNCGS-25045H CNCGS-25065H CNCGS-31080H CNCGS-310130H CNCGS-310160H CNCGS-310200H
Type (model) CNCGS-310100H CNCGS-310250H
CNCGS-31045H CNCGS-31065H CNCGS-41080H CNCGS-410100H CNCGS-410130H CNCGS-410160H CNCGS-410200H CNCGS-410250H
CNCGS-41045H CNCGS-41065H CNCGS-61080H CNCGS-610100H CNCGS-610130H CNCGS-610160H CNCGS-610200H CNCGS-610250H
CNCGS-61045H CNCGS-61065H
1550 1550
2000 2000 2500 1550 2500 2500 2500 2000
2500
2500
Shearing Length (mm) 2500 2500 3100 3100 3100 3100 3100 3100
3100 3100 4100 4100 4100 4100 4100 4100
4100 4100 6100 6100 6100 6100 6100 6100
6100 6100
Max.Thickness 4.5 6.5 8.0 10 13 16 20 25
(SS400) (mm)
Stainess Steel Thickness 3.0 4.0 5.0 6.5 8.5 10.5 13 16.5
(SUS304) (mm)
Throat (mm) 100 100 100 100 100 100 100 100
Max.Angle (SS400) 2° 2° 2° 30' 2° 30' 2° 30' 2° 30' 2° 30' 2° 30'
Minimum Angle 1° 1° 1° 1° 1° 1° 1° 1°
27-35 26-34 22-30 11-17
26-34 25-33 18-26 18-26 15-21 11-17 10-16 10-16
25-33 24-32 15-23 13-19 9-15 8-14
Shear/Min 24-32 21-29 12-20 15-23 10-16 7-13 6-12 8-13
17-25 15-23 7-15 12-20 7-13 3-9 2-8 6-12
2-8
7-15
11-19 11-19
9 9 9 10
11 11 13 13 13 13
Hold-Down Bean 13 13 16 13 16 16 16 13
16
16
Cylinder (PC) 16 16 21 21 21 21
21 21 30 21 30 30 30 21
30
30
30 30
10 15 30 100
10 15 25 40 50 100
10 15 25 30 40 50 100 100
Main Motor (HP) 30 125
15 20 30 40 50 50 100 125
15 25 40 50 75 75 125 125
20 30
Backagauge Stroke 800 800 800 800 800 800 800 800
(mm)
287
