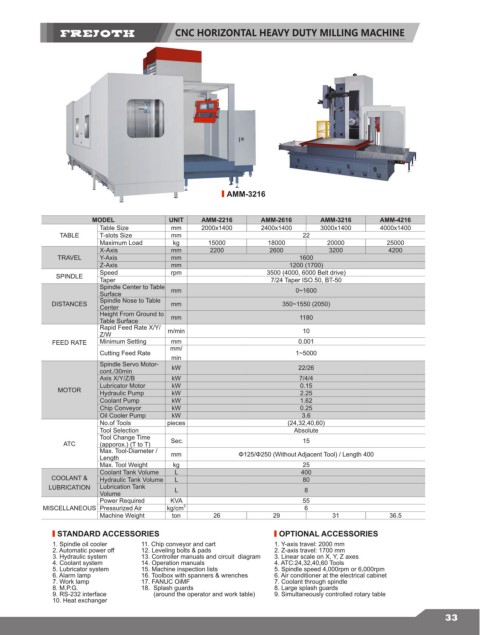

CNC HORIZONTAL HEAVY DUTY MILLING MACHINE
AMM-3216
MODEL UNIT AMM-2216 AMM-2616 AMM-3216 AMM-4216
Table Size mm 2000x1400 2400x1400 3000x1400 4000x1400
TABLE T-slots Size mm 22
Maximum Load kg 15000 18000 20000 25000
X-Axis mm 2200 2600 3200 4200
TRAVEL Y-Axis mm 1600
Z-Axis mm 1200 (1700)
Speed rpm 3500 (4000, 6000 Belt drive)
SPINDLE
Taper 7/24 Taper ISO.50, BT-50
Spindle Center to Table mm 0~1600
Surface
DISTANCES Spindle Nose to Table mm 350~1550 (2050)
Center
Height From Ground to
Table Surface mm 1180
Rapid Feed Rate X/Y/
Z/W m/min 10
FEED RATE Minimum Setting mm 0.001
Cutting Feed Rate mm/ 1~5000
min
Spindle Servo Motor-
cont./30min kW 22/26
Axis X/Y/Z/B kW 7/4/4
Lubricator Motor kW 0.15
MOTOR Hydraulic Pump kW 2.25
Coolant Pump kW 1.62
Chip Conveyor kW 0.25
Oil Cooler Pump kW 3.6
No.of Tools pieces (24,32,40,60)
Tool Selection Absolute
Tool Change Time
ATC (apporox.) (T to T) Sec. 15
Max. Tool-Diameter /
Length mm Φ125/Φ250 (Without Adjacent Tool) / Length 400
Max. Tool Weight kg 25
Coolant Tank Volume L 400
COOLANT & Hydraulic Tank Volume L 80
LUBRICATION Lubrication Tank L 8
Volume
Power Required KVA 55
MISCELLANEOUS Pressurized Air kg/cm 2 6
Machine Weight ton 26 29 31 36.5
STANDARD ACCESSORIES OPTIONAL ACCESSORIES
1. Spindle oil cooler 11. Chip conveyor and cart 1. Y-axis travel: 2000 mm
2. Automatic power off 12. Leveling bolts & pads 2. Z-axis travel: 1700 mm
3. Hydraulic system 13. Controller manuals and circuit diagram 3. Linear scale on X, Y, Z axes
4. Coolant system 14. Operation manuals 4. ATC:24,32,40,60 Tools
5. Lubricator system 15. Machine inspection lists 5. Spindle speed 4,000rpm or 6,000rpm
6. Alarm lamp 16. Toolbox with spanners & wrenches 6. Air conditioner at the electrical cabinet
7. Work lamp 17. FANUC OiMF 7. Coolant through spindle
8. M.P.G. 18. Splash guards 8. Large splash guards
9. RS-232 interface (around the operator and work table) 9. Simultaneously controlled rotary table
10. Heat exchanger
