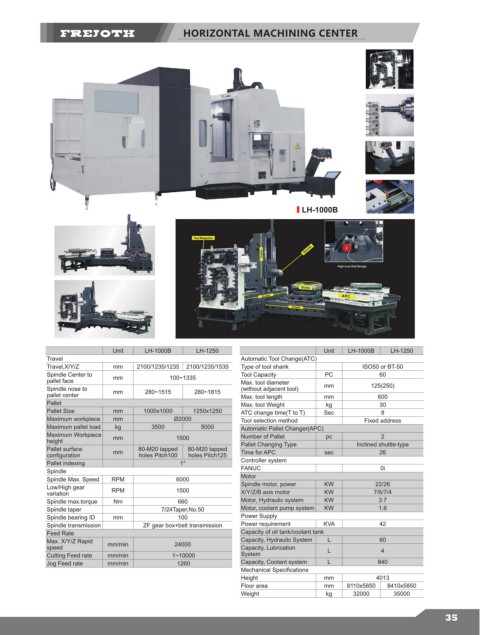

HORIZONTAL MACHINING CENTER

LH-1000B

Unit LH-1000B LH-1250 Unit LH-1000B LH-1250
Travel Automatic Tool Change(ATC)
Travel,X/Y/Z mm 2100/1235/1235 2100/1235/1535 Type of tool shank ISO50 or BT-50
Spindle Center to mm 100~1335 Tool Capacity PC 60
pallet face Max. tool diameter
Spindle nose to mm 280~1515 280~1815 (without adjacent tool) mm 125(250)
pallet center Max. tool length mm 600
Pallet Max. tool Weight kg 30
Pallet Size mm 1000x1000 1250x1250 ATC change time(T to T) Sec 8
Maximum workpiece mm Ø2000 Tool selection method Fixed address
Maximum pallet load kg 3500 5000 Automatic Pallet Changer(APC)
Maximum Workpiece mm 1500 Number of Pallet pc 2
height Pallet Changing Type Inclined shuttle-type
Pallet surface mm 80-M20 tapped 80-M20 tapped Time for APC sec 26
configuration holes Pitch100 holes Pitch125
Pallet indexing 1° Controller system
Spindle FANUC 0i
Spindle Max. Speed RPM 6000 Motor
Low/High gear RPM 1500 Spindle motor, power KW 22/26
variation X/Y/Z/B axis motor KW 7/6/7/4
Spindle max.torque Nm 660 Motor, Hydraulic system KW 3.7
Spindle taper 7/24Taper,No.50 Motor, coolant pump system KW 1.6
Spindle bearing ID mm 100 Power Supply
Spindle transmission ZF gear box+belt transmission Power requirement KVA 42
Feed Rate Capacity of oil tank/coolant tank
Max. X/Y/Z Rapid mm/min 24000 Capacity, Hydraulic System L 60
speed Capacity, Lubrication L 4
Cutting Feed rate mm/min 1~10000 System
Jog Feed rate mm/min 1260 Capacity, Coolant system L 840
Mechanical Specifications
Height mm 4013
Floor area mm 8110x5850 8410x5850
Weight kg 32000 35000
