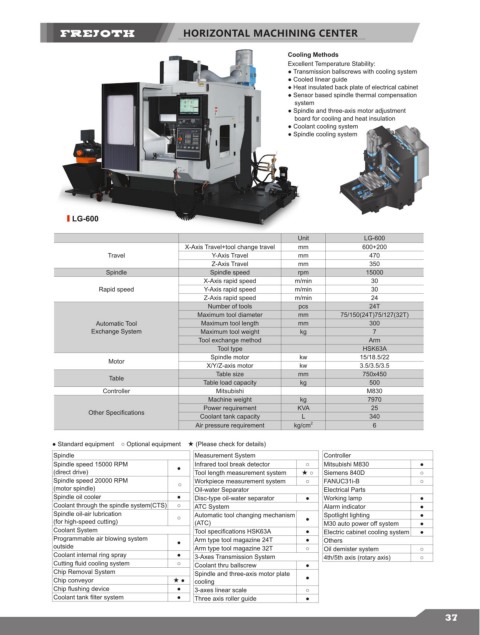

HORIZONTAL MACHINING CENTER

Cooling Methods
Excellent Temperature Stability:
● Transmission ballscrews with cooling system
● Cooled linear guide
● Heat insulated back plate of electrical cabinet
● Sensor based spindle thermal compensation
system
● Spindle and three-axis motor adjustment
board for cooling and heat insulation
● Coolant cooling system
● Spindle cooling system

LG-600

Unit LG-600
X-Axis Travel+tool change travel mm 600+200
Travel Y-Axis Travel mm 470
Z-Axis Travel mm 350
Spindle Spindle speed rpm 15000
X-Axis rapid speed m/min 30
Rapid speed Y-Axis rapid speed m/min 30
Z-Axis rapid speed m/min 24
Number of tools pcs 24T
Maximum tool diameter mm 75/150(24T)75/127(32T)
Automatic Tool Maximum tool length mm 300
Exchange System Maximum tool weight kg 7
Tool exchange method Arm
Tool type HSK63A
Spindle motor kw 15/18.5/22
Motor
X/Y/Z-axis motor kw 3.5/3.5/3.5
Table size mm 750x450
Table
Table load capacity kg 500
Controller Mitsubishi M830
Machine weight kg 7970
Power requirement KVA 25
Other Specifications
Coolant tank capacity L 340
Air pressure requirement kg/cm 2 6

● Standard equipment ○ Optional equipment ★ (Please check for details)
Spindle Measurement System Controller
Spindle speed 15000 RPM ● Infrared tool break detector ○ Mitsubishi M830 ●
(direct drive) Tool length measurement system ★ ○ Siemens 840D ○
Spindle speed 20000 RPM ○ Workpiece measurement system ○ FANUC31i-B ○
(motor spindle) Oil-water Separator Electrical Parts
Spindle oil cooler ● Disc-type oil-water separator ● Working lamp ●
Coolant through the spindle system(CTS) ○ ATC System Alarm indicator ●
Spindle oil-air lubrication ○ Automatic tool changing mechanism Spotlight lighting ●
(for high-speed cutting) (ATC) ● M30 auto power off system ●
Coolant System Tool specifications HSK63A ● Electric cabinet cooling system ●
Programmable air blowing system ● Arm type tool magazine 24T ● Others
outside Arm type tool magazine 32T ○ Oil demister system ○
Coolant internal ring spray ● 3-Axes Transmission System 4th/5th axis (rotary axis) ○
Cutting fluid cooling system ○ Coolant thru ballscrew ●
Chip Removal System Spindle and three-axis motor plate
Chip conveyor ★ ● cooling ●
Chip flushing device ● 3-axes linear scale ○
Coolant tank filter system ● Three axis roller guide ●
