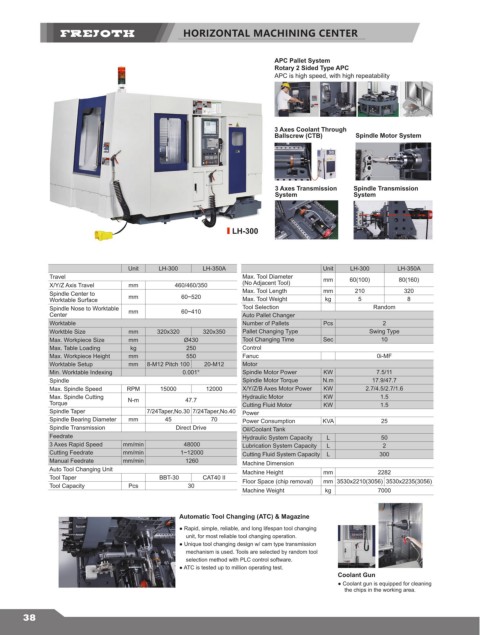

HORIZONTAL MACHINING CENTER

APC Pallet System
Rotary 2 Sided Type APC
APC is high speed, with high repeatability

3 Axes Coolant Through
Ballscrew (CTB) Spindle Motor System

3 Axes Transmission Spindle Transmission
System System

LH-300

Unit LH-300 LH-350A Unit LH-300 LH-350A
Travel Max. Tool Diameter mm 60(100) 80(160)
X/Y/Z Axis Travel mm 460/460/350 (No Adjacent Tool)
Spindle Center to mm 60~520 Max. Tool Length mm 210 320
Worktable Surface Max. Tool Weight kg 5 8
Spindle Nose to Worktable mm 60~410 Tool Selection Random
Center Auto Pallet Changer
Worktable Number of Pallets Pcs 2
Worktble Size mm 320x320 320x350 Pallet Changing Type Swing Type
Max. Workpiece Size mm Ø430 Tool Changing Time Sec 10
Max. Table Loading kg 250 Control
Max. Workpiece Height mm 550 Fanuc 0i-MF
Worktable Setup mm 8-M12 Pitch 100 20-M12 Motor
Min. Worktable Indexing 0.001° Spindle Motor Power KW 7.5/11
Spindle Spindle Motor Torque N.m 17.9/47.7
Max. Spindle Speed RPM 15000 12000 X/Y/Z/B Axes Motor Power KW 2.7/4.5/2.7/1.6
Max. Spindle Cutting N-m 47.7 Hydraulic Motor KW 1.5
Torque Cutting Fluid Motor KW 1.5
Spindle Taper 7/24Taper,No.30 7/24Taper,No.40 Power
Spindle Bearing Diameter mm 45 70 Power Consumption KVA 25
Spindle Transmission Direct Drive Oil/Coolant Tank
Feedrate Hydraulic System Capacity L 50
3 Axes Rapid Speed mm/min 48000 Lubrication System Capacity L 2
Cutting Feedrate mm/min 1~12000 Cutting Fluid System Capacity L 300
Manual Feedrate mm/min 1260 Machine Dimension
Auto Tool Changing Unit Machine Height mm 2282
Tool Taper BBT-30 CAT40 II Floor Space (chip removal) mm 3530x2210(3056) 3530x2235(3056)
Tool Capacity Pcs 30
Machine Weight kg 7000

Automatic Tool Changing (ATC) & Magazine
● Rapid, simple, reliable, and long lifespan tool changing
unit, for most reliable tool changing operation.
● Unique tool changing design w/ cam type transmission
mechanism is used. Tools are selected by random tool
selection method with PLC control software.
● ATC is tested up to million operating test.
Coolant Gun
● Coolant gun is equipped for cleaning
the chips in the working area.
