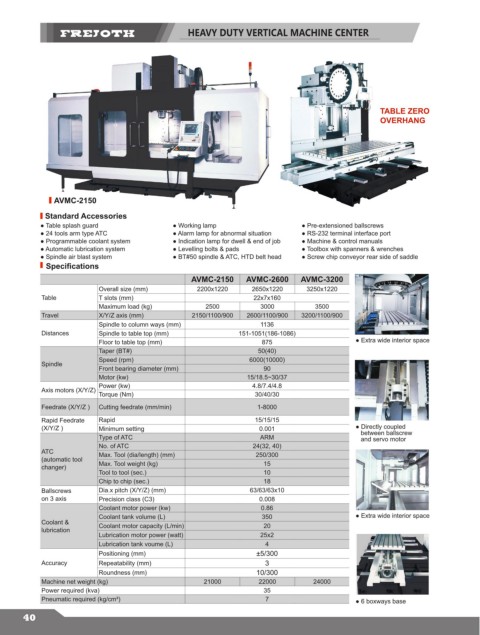

HEAVY DUTY VERTICAL MACHINE CENTER

TABLE ZERO
OVERHANG

AVMC-2150

Standard Accessories
● Table splash guard ● Working lamp ● Pre-extensioned ballscrews
● 24 tools arm type ATC ● Alarm lamp for abnormal situation ● RS-232 terminal interface port
● Programmable coolant system ● Indication lamp for dwell & end of job ● Machine & control manuals
● Automatic lubrication system ● Levelling bolts & pads ● Toolbox with spanners & wrenches
● Spindle air blast system ● BT#50 spindle & ATC, HTD belt head ● Screw chip conveyor rear side of saddle
Specifications
AVMC-2150 AVMC-2600 AVMC-3200
Overall size (mm) 2200x1220 2650x1220 3250x1220
Table T slots (mm) 22x7x160
Maximum load (kg) 2500 3000 3500
Travel X/Y/Z axis (mm) 2150/1100/900 2600/1100/900 3200/1100/900
Spindle to column ways (mm) 1136
Distances Spindle to table top (mm) 151-1051(186-1086)
Floor to table top (mm) 875 ● Extra wide interior space
Taper (BT#) 50(40)
Speed (rpm) 6000(10000)
Spindle
Front bearing diameter (mm) 90
Motor (kw) 15/18.5~30/37
Power (kw) 4.8/7.4/4.8
Axis motors (X/Y/Z)
Torque (Nm) 30/40/30
Feedrate (X/Y/Z ) Cutting feedrate (mm/min) 1-8000
Rapid Feedrate Rapid 15/15/15
(X/Y/Z ) Minimum setting 0.001 ● Directly coupled
between ballscrew
Type of ATC ARM and servo motor
No. of ATC 24(32, 40)
ATC Max. Tool (dia/length) (mm) 250/300
(automatic tool
changer) Max. Tool weight (kg) 15
Tool to tool (sec.) 10
Chip to chip (sec.) 18
Ballscrews Dia.x pitch (X/Y/Z) (mm) 63/63/63x10
on 3 axis Precision class (C3) 0.008
Coolant motor power (kw) 0.86
Coolant tank volume (L) 350 ● Extra wide interior space
Coolant & Coolant motor capacity (L/min) 20
lubrication
Lubrication motor power (watt) 25x2
Lubrication tank voume (L) 4
Positioning (mm) ±5/300
Accuracy Repeatability (mm) 3
Roundness (mm) 10/300
Machine net weight (kg) 21000 22000 24000
Power required (kva) 35
Pneumatic required (kg/cm²) 7 ● 6 boxways base
