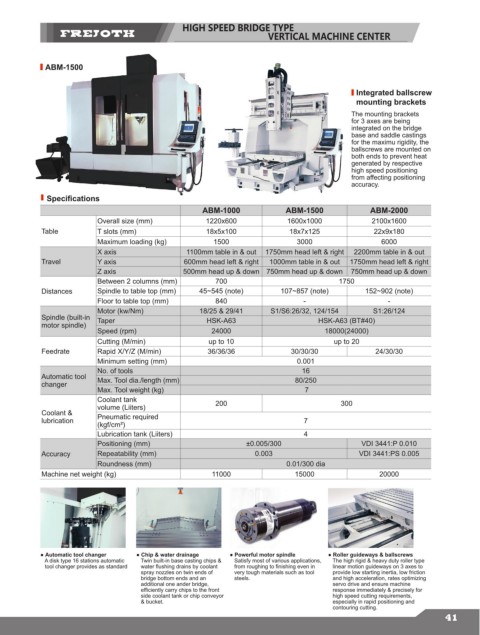

HIGH SPEED BRIDGE TYPE
VERTICAL MACHINE CENTER

ABM-1500

Integrated ballscrew
mounting brackets
The mounting brackets
for 3 axes are being
integrated on the bridge
base and saddle castings
for the maximu rigidity, the
ballscrews are mounted on
both ends to prevent heat
generated by respective
high speed positioning
from affecting positioning
accuracy.
Specifications
ABM-1000 ABM-1500 ABM-2000
Overall size (mm) 1220x600 1600x1000 2100x1600
Table T slots (mm) 18x5x100 18x7x125 22x9x180
Maximum loading (kg) 1500 3000 6000
X axis 1100mm table in & out 1750mm head left & right 2200mm table in & out
Travel Y axis 600mm head left & right 1000mm table in & out 1750mm head left & right
Z axis 500mm head up & down 750mm head up & down 750mm head up & down
Between 2 columns (mm) 700 1750
Distances Spindle to table top (mm) 45~545 (note) 107~857 (note) 152~902 (note)
Floor to table top (mm) 840 - -
Motor (kw/Nm) 18/25 & 29/41 S1/S6:26/32, 124/154 S1:26/124
Spindle (built-in Taper HSK-A63 HSK-A63 (BT#40)
motor spindle)
Speed (rpm) 24000 18000(24000)
Cutting (M/min) up to 10 up to 20
Feedrate Rapid X/Y/Z (M/min) 36/36/36 30/30/30 24/30/30
Minimum setting (mm) 0.001
No. of tools 16
Automatic tool Max. Tool dia./length (mm) 80/250
changer
Max. Tool weight (kg) 7
Coolant tank 200 300
volume (Liiters)
Coolant & Pneumatic required
lubrication 7
(kgf/cm²)
Lubrication tank (Liiters) 4
Positioning (mm) ±0.005/300 VDI 3441:P 0.010
Accuracy Repeatability (mm) 0.003 VDI 3441:PS 0.005
Roundness (mm) 0.01/300 dia
Machine net weight (kg) 11000 15000 20000

● Automatic tool changer ● Chip & water drainage ● Powerful motor spindle ● Roller guideways & ballscrews
A disk type 16 stations automatic Twin built-in base casting chips & Satisfy most of various applications, The high rigid & heavy duty roller type
tool changer provides as standard water flushing drains by coolant from roughing to finishing even in linear motion guideways on 3 axes to
spray nozzles on twin ends of very tough materials such as tool provide low starting inertia, low friction
bridge bottom ends and an steels. and high acceleration, rates optimizing
additional one ander bridge, servo drive and ensure machine
efficiently carry chips to the front response immediately & precisely for
side coolant tank or chip conveyor high speed cutting requirements,
& bucket. especially in rapid positioning and
contouring cutting.
