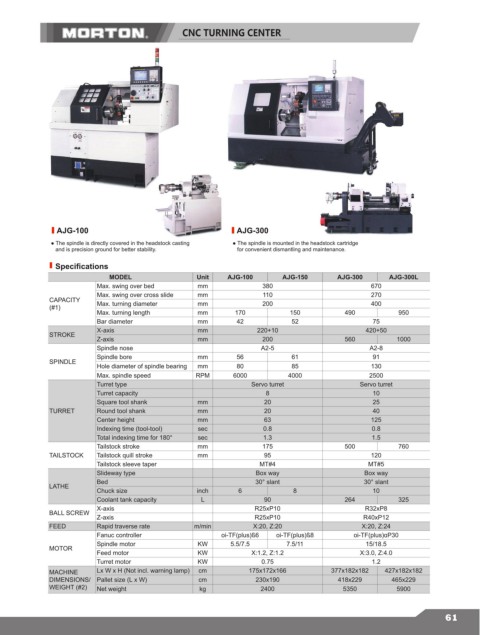

CNC TURNING CENTER

AJG-100 AJG-300
● The spindle is directly covered in the headstock casting ● The spindle is mounted in the headstock cartridge
and is precision ground for better stability. for convenient dismantling and maintenance.

Specifications
MODEL Unit AJG-100 AJG-150 AJG-300 AJG-300L
Max. swing over bed mm 380 670
Max. swing over cross slide mm 110 270
CAPACITY Max. turning diameter mm 200 400
(#1)
Max. turning length mm 170 150 490 950
Bar diameter mm 42 52 75
X-axis mm 220+10 420+50
STROKE
Z-axis mm 200 560 1000
Spindle nose A2-5 A2-8
Spindle bore mm 56 61 91
SPINDLE
Hole diameter of spindle bearing mm 80 85 130
Max. spindle speed RPM 6000 4000 2500
Turret type Servo turret Servo turret
Turret capacity 8 10
Square tool shank mm 20 25
TURRET Round tool shank mm 20 40
Center height mm 63 125
Indexing time (tool-tool) sec 0.8 0.8
Total indexing time for 180° sec 1.3 1.5
Tailstock stroke mm 175 500 760
TAILSTOCK Tailstock quill stroke mm 95 120
Tailstock sleeve taper MT#4 MT#5
Slideway type Box way Box way
Bed 30° slant 30° slant
LATHE
Chuck size inch 6 8 10
Coolant tank capacity L 90 264 325
X-axis R25xP10 R32xP8
BALL SCREW
Z-axis R25xP10 R40xP12
FEED Rapid traverse rate m/min X:20, Z:20 X:20, Z:24
Fanuc controller oi-TF(plus)ß6 oi-TF(plus)ß8 oi-TF(plus)ɑP30
Spindle motor KW 5.5/7.5 7.5/11 15/18.5
MOTOR
Feed motor KW X:1.2, Z:1.2 X:3.0, Z:4.0
Turret motor KW 0.75 1.2
MACHINE Lx W x H (Not incl. warning lamp) cm 175x172x166 377x182x182 427x182x182
DIMENSIONS/ Pallet size (L x W) cm 230x190 418x229 465x229
WEIGHT (#2) Net weight kg 2400 5350 5900
