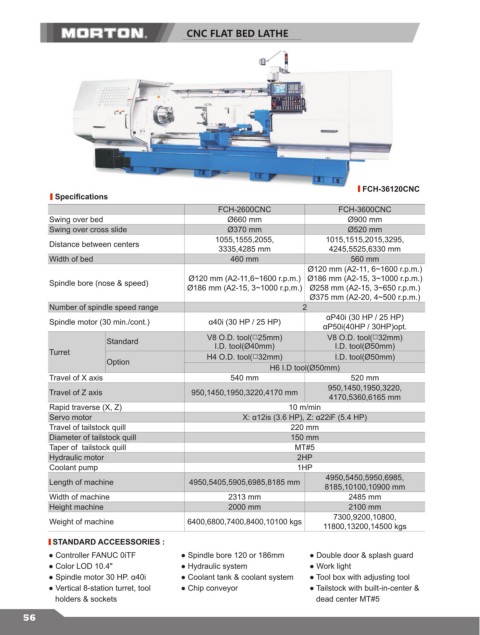

CNC FLAT BED LATHE

FCH-36120CNC
Specifications
FCH-2600CNC FCH-3600CNC
Swing over bed Ø660 mm Ø900 mm
Swing over cross slide Ø370 mm Ø520 mm
1055,1555,2055, 1015,1515,2015,3295,
Distance between centers
3335,4285 mm 4245,5525,6330 mm
Width of bed 460 mm 560 mm
Ø120 mm (A2-11, 6~1600 r.p.m.)
Ø120 mm (A2-11,6~1600 r.p.m.) Ø186 mm (A2-15, 3~1000 r.p.m.)
Spindle bore (nose & speed)
Ø186 mm (A2-15, 3~1000 r.p.m.) Ø258 mm (A2-15, 3~650 r.p.m.)
Ø375 mm (A2-20, 4~500 r.p.m.)
Number of spindle speed range 2
αP40i (30 HP / 25 HP)
Spindle motor (30 min./cont.) α40i (30 HP / 25 HP)
αP50i(40HP / 30HP)opt.
Standard V8 O.D. tool(□25mm) V8 O.D. tool(□32mm)
I.D. tool(Ø50mm)
I.D. tool(Ø40mm)
Turret H4 O.D. tool(□32mm) I.D. tool(Ø50mm)
Option
H6 I.D tool(Ø50mm)
Travel of X axis 540 mm 520 mm
950,1450,1950,3220,
Travel of Z axis 950,1450,1950,3220,4170 mm
4170,5360,6165 mm
Rapid traverse (X, Z) 10 m/min
Servo motor X: α12is (3.6 HP), Z: α22iF (5.4 HP)
Travel of tailstock quill 220 mm
Diameter of tailstock quill 150 mm
Taper of tailstock quill MT#5
Hydraulic motor 2HP
Coolant pump 1HP
4950,5450,5950,6985,
Length of machine 4950,5405,5905,6985,8185 mm
8185,10100,10900 mm
Width of machine 2313 mm 2485 mm
Height machine 2000 mm 2100 mm
7300,9200,10800,
Weight of machine 6400,6800,7400,8400,10100 kgs
11800,13200,14500 kgs
STANDARD ACCEESSORIES :
● Controller FANUC 0iTF ● Spindle bore 120 or 186mm ● Double door & splash guard
● Color LOD 10.4" ● Hydraulic system ● Work light
● Spindle motor 30 HP. α40i ● Coolant tank & coolant system ● Tool box with adjusting tool
● Vertical 8-station turret, tool ● Chip conveyor ● Tailstock with built-in-center &
holders & sockets dead center MT#5
