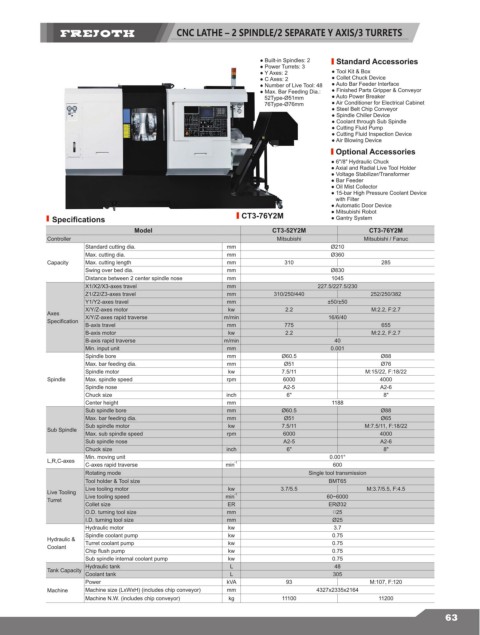

CNC LATHE – 2 SPINDLE/2 SEPARATE Y AXIS/3 TURRETS

● Built-in Spindles: 2 Standard Accessories
● Power Turrets: 3
● Y Axes: 2 ● Tool Kit & Box
● C Axes: 2 ● Collet Chuck Device
● Number of Live Tool: 48 ● Auto Bar Feeder Interface
● Max. Bar Feeding Dia.: ● Finished Parts Gripper & Conveyor
52Type-Ø51mm ● Auto Power Breaker
76Type-Ø76mm ● Air Conditioner for Electrical Cabinet
● Steel Belt Chip Conveyor
● Spindle Chiller Device
● Coolant through Sub Spindle
● Cutting Fluid Pump
● Cutting Fluid Inspection Device
● Air Blowing Device
Optional Accessories
● 6"/8" Hydraulic Chuck
● Axial and Radial Live Tool Holder
● Voltage Stabilizer/Transformer
● Bar Feeder
● Oil Mist Collector
● 15-bar High Pressure Coolant Device
with Filter
● Automatic Door Device
● Mitsubishi Robot
Specifications CT3-76Y2M ● Gantry System
Model CT3-52Y2M CT3-76Y2M
Controller Mitsubishi Mitsubishi / Fanuc
Standard cutting dia. mm Ø210
Max. cutting dia. mm Ø360
Capacity Max. cutting length mm 310 285
Swing over bed dia. mm Ø830
Distance between 2 center spindle nose mm 1045
X1/X2/X3-axes travel mm 227.5/227.5/230
Z1/Z2/Z3-axes travel mm 310/250/440 252/250/382
Y1/Y2-axes travel mm ±50/±50
X/Y/Z-axes motor kw 2.2 M:2.2, F:2.7
Axes X/Y/Z-axes rapid traverse m/min 16/6/40
Specification
B-axis travel mm 775 655
B-axis motor kw 2.2 M:2.2, F:2.7
B-axis rapid traverse m/min 40
Min. input unit mm 0.001
Spindle bore mm Ø60.5 Ø88
Max. bar feeding dia. mm Ø51 Ø76
Spindle motor kw 7.5/11 M:15/22, F:18/22
Spindle Max. spindle speed rpm 6000 4000
Spindle nose A2-5 A2-6
Chuck size inch 6" 8"
Center height mm 1188
Sub spindle bore mm Ø60.5 Ø88
Max. bar feeding dia. mm Ø51 Ø65
Sub spindle motor kw 7.5/11 M:7.5/11, F:18/22
Sub Spindle
Max. sub spindle speed rpm 6000 4000
Sub spindle nose A2-5 A2-6
Chuck size inch 6" 8"
Min. moving unit 0.001°
L,R,C-axes -1
C-axes rapid traverse min 600
Rotating mode Single tool transmission
Tool holder & Tool size BMT65
Live tooling motor kw 3.7/5.5 M:3.7/5.5, F:4.5
Live Tooling Live tooling speed min -1 60~6000
Turret
Collet size ER ERØ32
O.D. turning tool size mm □25
I.D. turning tool size mm Ø25
Hydraulic motor kw 3.7
Spindle coolant pump kw 0.75
Hydraulic & Turret coolant pump kw 0.75
Coolant
Chip flush pump kw 0.75
Sub spindle internal coolant pump kw 0.75
Hydraulic tank L 48
Tank Capacity
Coolant tank L 305
Power kVA 93 M:107, F:120
Machine Machine size (LxWxH) (includes chip conveyor) mm 4327x2335x2164
Machine N.W. (includes chip conveyor) kg 11100 11200
