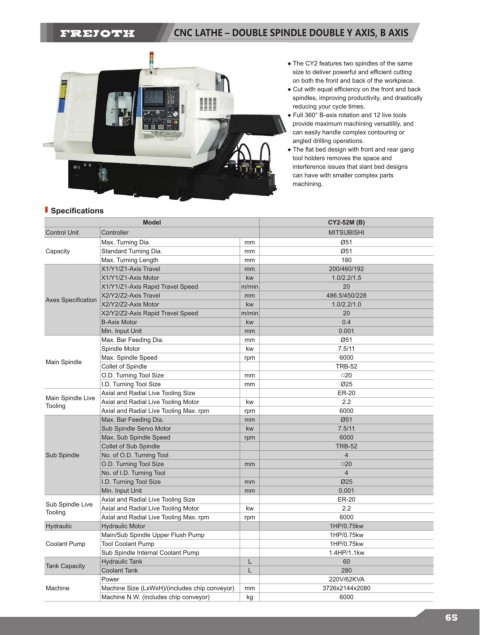

CNC LATHE – DOUBLE SPINDLE DOUBLE Y AXIS, B AXIS

Standard Accessories
● The CY2 features two spindles of the same
size to deliver powerful and efficient cutting
on both the front and back of the workpiece.
● Cut with equal efficiency on the front and back
spindles, improving productivity, and drastically
reducing your cycle times.
● Full 360° B-axis rotation and 12 live tools
provide maximum machining versatility, and
Optional Accessories can easily handle complex contouring or
angled drilling operations.
● The flat bed design with front and rear gang
tool holders removes the space and
interference issues that slant bed designs
can have with smaller complex parts
machining.

Specifications
Model CY2-52M (B)
Control Unit Controller MITSUBISHI
Max. Turning Dia. mm Ø51
Capacity Standard Turning Dia. mm Ø51
Max. Turning Length mm 180
X1/Y1/Z1-Axis Travel mm 200/460/192
X1/Y1/Z1-Axis Motor kw 1.0/2.2/1.5
X1/Y1/Z1-Axis Rapid Travel Speed m/min 20
X2/Y2/Z2-Axis Travel mm 486.5/450/228
Axes Specification
X2/Y2/Z2-Axis Motor kw 1.0/2.2/1.0
X2/Y2/Z2-Axis Rapid Travel Speed m/min 20
B-Axis Motor kw 0.4
Min. Input Unit mm 0.001
Max. Bar Feeding Dia. mm Ø51
Spindle Motor kw 7.5/11
Max. Spindle Speed rpm 6000
Main Spindle
Collet of Spindle TRB-52
O.D. Turning Tool Size mm □20
I.D. Turning Tool Size mm Ø25
Axial and Radial Live Tooling Size ER-20
Main Spindle Live Axial and Radial Live Tooling Motor kw 2.2
Tooling
Axial and Radial Live Tooling Max. rpm rpm 6000
Max. Bar Feeding Dia. mm Ø51
Sub Spindle Servo Motor kw 7.5/11
Max. Sub Spindle Speed rpm 6000
Collet of Sub Spindle TRB-52
Sub Spindle No. of O.D. Turning Tool 4
O.D. Turning Tool Size mm □20
No. of I.D. Turning Tool 4
I.D. Turning Tool Size mm Ø25
Min. Input Unit mm 0.001
Axial and Radial Live Tooling Size ER-20
Sub Spindle Live Axial and Radial Live Tooling Motor kw 2.2
Tooling
Axial and Radial Live Tooling Max. rpm rpm 6000
Hydraulic Hydraulic Motor 1HP/0.75kw
Main/Sub Spindle Upper Flush Pump 1HP/0.75kw
Coolant Pump Tool Coolant Pump 1HP/0.75kw
Sub Spindle Internal Coolant Pump 1.4HP/1.1kw
Hydraulic Tank L 60
Tank Capacity
Coolant Tank L 280
Power 220V/62KVA
Machine Machine Size (LxWxH)/(includes chip conveyor) mm 3726x2144x2080
Machine N.W. (includes chip conveyor) kg 6000
