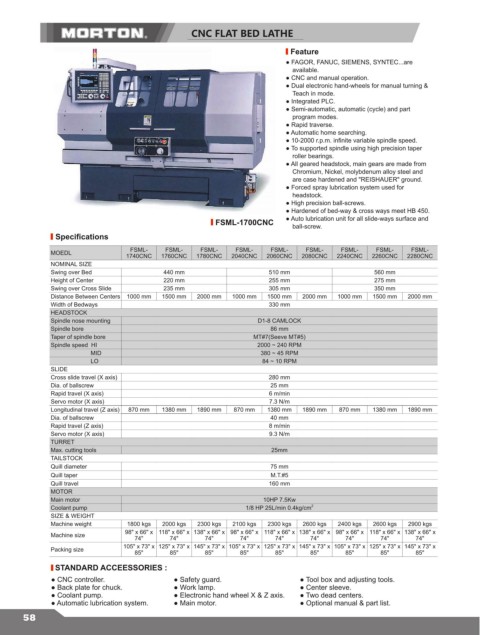

CNC FLAT BED LATHE

Feature
● FAGOR, FANUC, SIEMENS, SYNTEC...are
available.
● CNC and manual operation.
● Dual electronic hand-wheels for manual turning &
Teach in mode.
● Integrated PLC.
● Semi-automatic, automatic (cycle) and part
program modes.
● Rapid traverse.
● Automatic home searching.
● 10-2000 r.p.m. infinite variable spindle speed.
● To supported spindle using high precision taper
roller bearings.
● All geared headstock, main gears are made from
Chromium, Nickel, molybdenum alloy steel and
are case hardened and "REISHAUER" ground.
● Forced spray lubrication system used for
headstock.
● High precision ball-screws.
● Hardened of bed-way & cross ways meet HB 450.
FSML-1700CNC ● Auto lubrication unit for all slide-ways surface and
ball-screw.
Specifications
FSML- FSML- FSML- FSML- FSML- FSML- FSML- FSML- FSML-
MOEDL
1740CNC 1760CNC 1780CNC 2040CNC 2060CNC 2080CNC 2240CNC 2260CNC 2280CNC
NOMINAL SIZE
Swing over Bed 440 mm 510 mm 560 mm
Height of Center 220 mm 255 mm 275 mm
Swing over Cross Slide 235 mm 305 mm 350 mm
Distance Between Centers 1000 mm 1500 mm 2000 mm 1000 mm 1500 mm 2000 mm 1000 mm 1500 mm 2000 mm
Width of Bedways 330 mm
HEADSTOCK
Spindle nose mounting D1-8 CAMLOCK
Spindle bore 86 mm
Taper of spindle bore MT#7(Seeve MT#5)
Spindle speed HI 2000 ~ 240 RPM
MID 380 ~ 45 RPM
LO 84 ~ 10 RPM
SLIDE
Cross slide travel (X axis) 280 mm
Dia. of ballscrew 25 mm
Rapid travel (X axis) 6 m/min
Servo motor (X axis) 7.3 N/m
Longitudinal travel (Z axis) 870 mm 1380 mm 1890 mm 870 mm 1380 mm 1890 mm 870 mm 1380 mm 1890 mm
Dia. of ballscrew 40 mm
Rapid travel (Z axis) 8 m/min
Servo motor (X axis) 9.3 N/m
TURRET
Max. cutting tools 25mm
TAILSTOCK
Quill diameter 75 mm
Quill taper M.T.#5
Quill travel 160 mm
MOTOR
Main motor 10HP 7.5Kw
Coolant pump 1/8 HP 25L/min 0.4kg/cm 2
SIZE & WEIGHT
Machine weight 1800 kgs 2000 kgs 2300 kgs 2100 kgs 2300 kgs 2600 kgs 2400 kgs 2600 kgs 2900 kgs
Machine size 98" x 66" x 118" x 66" x 138" x 66" x 98" x 66" x 118" x 66" x 138" x 66" x 98" x 66" x 118" x 66" x 138" x 66" x
74"
74"
74"
74"
74"
74"
74"
74"
74"
105" x 73" x 125" x 73" x 145" x 73" x 105" x 73" x 125" x 73" x 145" x 73" x 105" x 73" x 125" x 73" x 145" x 73" x
Packing size
85" 85" 85" 85" 85" 85" 85" 85" 85"
STANDARD ACCEESSORIES :
● CNC controller. ● Safety guard. ● Tool box and adjusting tools.
● Back plate for chuck. ● Work lamp. ● Center sleeve.
● Coolant pump. ● Electronic hand wheel X & Z axis. ● Two dead centers.
● Automatic lubrication system. ● Main motor. ● Optional manual & part list.
58
