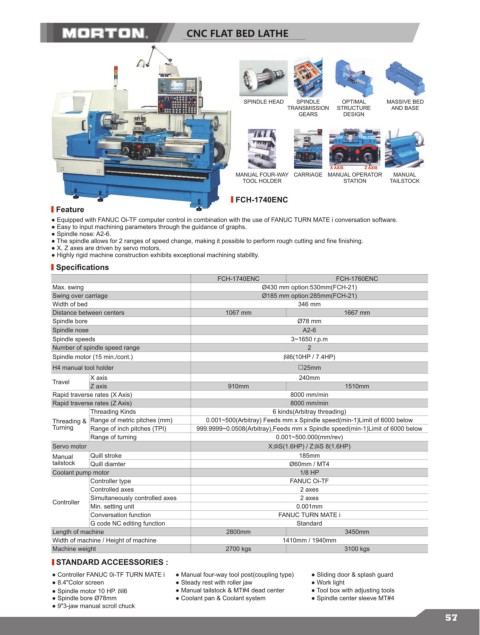

CNC FLAT BED LATHE

SPINDLE HEAD SPINDLE OPTIMAL MASSIVE BED
TRANSMISSION STRUCTURE AND BASE
GEARS DESIGN

X AXIS Z AXIS
MANUAL FOUR-WAY CARRIAGE MANUAL OPERATOR MANUAL
TOOL HOLDER STATION TAILSTOCK

FCH-1740ENC
Feature
● Equipped with FANUC Oi-TF computer control in combination with the use of FANUC TURN MATE i conversation software.
● Easy to input machining parameters through the guidance of graphs.
● Spindle nose: A2-6.
● The spindle allows for 2 ranges of speed change, making it possible to perform rough cutting and fine finishing.
● X, Z axes are driven by servo motors.
● Highly rigid machine construction exhibits exceptional machining stabillty.
Specifications
FCH-1740ENC FCH-1760ENC
Max. swing Ø430 mm option:530mm(FCH-21)
Swing over carriage Ø185 mm option:285mm(FCH-21)
Width of bed 346 mm
Distance between centers 1067 mm 1667 mm
Spindle bore Ø78 mm
Spindle nose A2-6
Spindle speeds 3~1650 r.p.m
Number of spindle speed range 2
Spindle motor (15 min./cont.) ᵝ il6(10HP / 7.4HP)
H4 manual tool holder □25mm
X axis 240mm
Travel
Z axis 910mm 1510mm
Rapid traverse rates (X Axis) 8000 mm/min
Rapid traverse rates (Z Axis) 8000 mm/min
Threading Kinds 6 kinds(Arbitray threading)
Threading & Range of metric pitches (mm) 0.001~500(Arbitray) Feeds mm x Spindle speed(min-1)Limit of 6000 below
Turning Range of inch pitches (TPI) 999.9999~0.0508(Arbitray),Feeds mm x Spindle speed(min-1)Limit of 6000 below
Range of turning 0.001~500.000(mm/rev)
Servo motor X: ᵝ iS(1.6HP) / Z: ᵝ iS 8(1.6HP)
Manual Quill stroke 185mm
tailstock Quill diamter Ø60mm / MT4
Coolant pump motor 1/8 HP
Controller type FANUC Oi-TF
Controlled axes 2 axes
Simultaneously controlled axes 2 axes
Controller
Min. setting unit 0.001mm
Conversation function FANUC TURN MATE i
G code NC editing function Standard
Length of machine 2800mm 3450mm
Width of machine / Height of machine 1410mm / 1940mm
Machine weight 2700 kgs 3100 kgs
STANDARD ACCEESSORIES :
● Controller FANUC 0i-TF TURN MATE i ● Manual four-way tool post(coupling type) ● Sliding door & splash guard
● 8.4"Color screen ● Steady rest with roller jaw ● Work light
● Spindle motor 10 HP. ᵝ il6 ● Manual tailstock & MT#4 dead center ● Tool box with adjusting tools
● Spindle bore Ø78mm ● Coolant pan & Coolant system ● Spindle center sleeve MT#4
● 9"3-jaw manual scroll chuck
