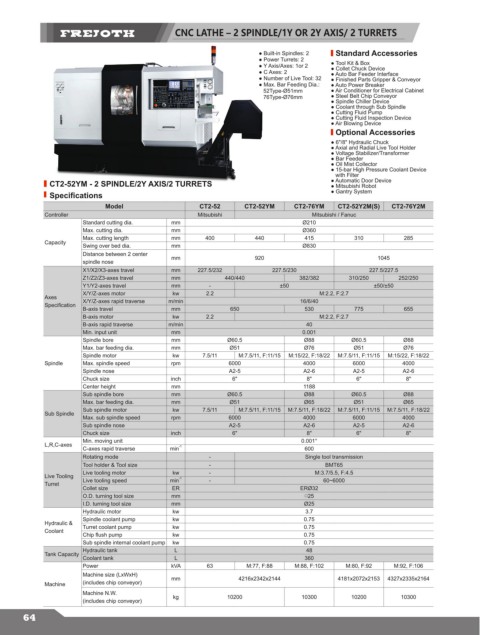

CNC LATHE – 2 SPINDLE/1Y OR 2Y AXIS/ 2 TURRETS

● Built-in Spindles: 2 Standard Accessories
● Power Turrets: 2 ● Tool Kit & Box
● Y Axis/Axes: 1or 2 ● Collet Chuck Device
● C Axes: 2 ● Auto Bar Feeder Interface
● Number of Live Tool: 32 ● Finished Parts Gripper & Conveyor
● Max. Bar Feeding Dia.: ● Auto Power Breaker
52Type-Ø51mm ● Air Conditioner for Electrical Cabinet
76Type-Ø76mm ● Steel Belt Chip Conveyor
● Spindle Chiller Device
● Coolant through Sub Spindle
● Cutting Fluid Pump
● Cutting Fluid Inspection Device
● Air Blowing Device
Optional Accessories
● 6"/8" Hydraulic Chuck
● Axial and Radial Live Tool Holder
● Voltage Stabilizer/Transformer
● Bar Feeder
● Oil Mist Collector
● 15-bar High Pressure Coolant Device
with Filter
CT2-52YM - 2 SPINDLE/2Y AXIS/2 TURRETS ● Automatic Door Device
● Mitsubishi Robot
Specifications ● Gantry System
Model CT2-52 CT2-52YM CT2-76YM CT2-52Y2M(S) CT2-76Y2M
Controller Mitsubishi Mitsubishi / Fanuc
Standard cutting dia. mm Ø210
Max. cutting dia. mm Ø360
Max. cutting length mm 400 440 415 310 285
Capacity
Swing over bed dia. mm Ø830
Distance between 2 center mm 920 1045
spindle nose
X1/X2/X3-axes travel mm 227.5/232 227.5/230 227.5/227.5
Z1/Z2/Z3-axes travel mm 440/440 382/382 310/250 252/250
Y1/Y2-axes travel mm - ±50 ±50/±50
X/Y/Z-axes motor kw 2.2 M:2.2, F:2.7
Axes X/Y/Z-axes rapid traverse m/min 16/6/40
Specification
B-axis travel mm 650 530 775 655
B-axis motor kw 2.2 M:2.2, F:2.7
B-axis rapid traverse m/min 40
Min. input unit mm 0.001
Spindle bore mm Ø60.5 Ø88 Ø60.5 Ø88
Max. bar feeding dia. mm Ø51 Ø76 Ø51 Ø76
Spindle motor kw 7.5/11 M:7.5/11, F:11/15 M:15/22, F:18/22 M:7.5/11, F:11/15 M:15/22, F:18/22
Spindle Max. spindle speed rpm 6000 4000 6000 4000
Spindle nose A2-5 A2-6 A2-5 A2-6
Chuck size inch 6" 8" 6" 8"
Center height mm 1188
Sub spindle bore mm Ø60.5 Ø88 Ø60.5 Ø88
Max. bar feeding dia. mm Ø51 Ø65 Ø51 Ø65
Sub spindle motor kw 7.5/11 M:7.5/11, F:11/15 M:7.5/11, F:18/22 M:7.5/11, F:11/15 M:7.5/11, F:18/22
Sub Spindle
Max. sub spindle speed rpm 6000 4000 6000 4000
Sub spindle nose A2-5 A2-6 A2-5 A2-6
Chuck size inch 6" 8" 6" 8"
Min. moving unit 0.001°
L,R,C-axes -1
C-axes rapid traverse min 600
Rotating mode - Single tool transmission
Tool holder & Tool size - BMT65
Live tooling motor kw - M:3.7/5.5, F:4.5
Live Tooling -1
Turret Live tooling speed min - 60~6000
Collet size ER ERØ32
O.D. turning tool size mm □25
I.D. turning tool size mm Ø25
Hydraulic motor kw 3.7
Spindle coolant pump kw 0.75
Hydraulic & Turret coolant pump kw 0.75
Coolant
Chip flush pump kw 0.75
Sub spindle internal coolant pump kw 0.75
Hydraulic tank L 48
Tank Capacity
Coolant tank L 360
Power kVA 63 M:77, F:88 M:88, F:102 M:80, F:92 M:92, F:106
Machine size (LxWxH) mm 4216x2342x2144 4181x2072x2153 4327x2335x2164
Machine (includes chip conveyor)
Machine N.W. kg 10200 10300 10200 10300
(includes chip conveyor)
