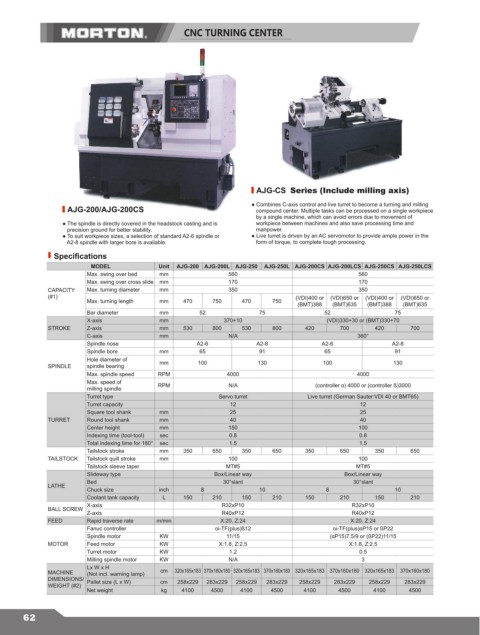

CNC TURNING CENTER

AJG-CS Series (Include milling axis)

● Combines C-axis control and live turret to become a turning and milling
AJG-200/AJG-200CS compound center. Multiple tasks can be processed on a single workpiece
by a single machine, which can avoid errors due to movement of
● The spindle is directly covered in the headstock casting and is workpiece between machines and also save processing time and
precision ground for better stability. manpower.
● To suit workpiece sizes, a selection of standard A2-6 spindle or ● Live turret is driven by an AC servomotor to provide ample power in the
A2-8 spindle with larger bore is available. form of torque, to complete tough processing.
Specifications
MODEL Unit AJG-200 AJG-200L AJG-250 AJG-250L AJG-200CS AJG-200LCS AJG-250CS AJG-250LCS
Max. swing over bed mm 560 560
Max. swing over cross slide mm 170 170
CAPACITY Max. turning diameter mm 350 350
(#1) (VDI)400 or (VDI)650 or (VDI)400 or (VDI)650 or
Max. turning length mm 470 750 470 750
(BMT)388 (BMT)635 (BMT)388 (BMT)635
Bar diameter mm 52 75 52 75
X-axis mm 370+10 (VDI)330+30 or (BMT)330+70
STROKE Z-axis mm 530 800 530 800 420 700 420 700
C-axis mm N/A 360°
Spindle nose A2-6 A2-8 A2-6 A2-8
Spindle bore mm 65 91 65 91
Hole diameter of mm 100 130 100 130
SPINDLE spindle bearing
Max. spindle speed RPM 4000 4000
Max. speed of RPM N/A (controller ɑ) 4000 or (controller ß)3000
milling spindle
Turret type Servo turret Live turret (German Sauter:VDI 40 or BMT65)
Turret capacity 12 12
Square tool shank mm 25 25
TURRET Round tool shank mm 40 40
Center height mm 150 100
Indexing time (tool-tool) sec 0.8 0.8
Total indexing time for 180° sec 1.5 1.5
Tailstock stroke mm 350 650 350 650 350 650 350 650
TAILSTOCK Tailstock quill stroke mm 100 100
Tailstock sleeve taper MT#5 MT#5
Slideway type Box/Linear way Box/Linear way
Bed 30°slant 30°slant
LATHE
Chuck size inch 8 10 8 10
Coolant tank capacity L 150 210 150 210 150 210 150 210
X-axis R32xP10 R32xP10
BALL SCREW
Z-axis R40xP12 R40xP12
FEED Rapid traverse rate m/min X:20, Z:24 X:20, Z:24
Fanuc controller oi-TF(plus)ß12 oi-TF(plus)ɑP15 or ßP22
Spindle motor KW 11/15 (ɑP15)7.5/9 or (ßP22)11/15
MOTOR Feed motor KW X:1.8, Z:2.5 X:1.8, Z:2.5
Turret motor KW 1.2 0.5
Milling spindle motor KW N/A 3
Lx W x H
MACHINE (Not incl. warning lamp) cm 320x165x183 370x160x180 320x165x183 370x160x180 320x165x183 370x160x180 320x165x183 370x160x180
DIMENSIONS/ Pallet size (L x W) cm 258x229 283x229 258x229 283x229 258x229 283x229 258x229 283x229
WEIGHT (#2)
Net weight kg 4100 4500 4100 4500 4100 4500 4100 4500
