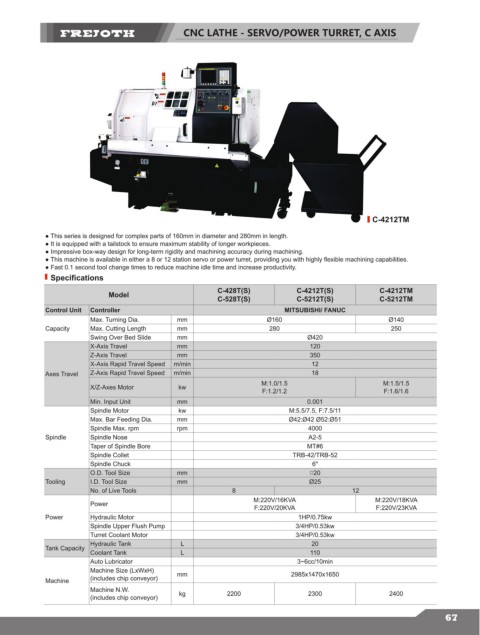

CNC LATHE - SERVO/POWER TURRET, C AXIS

Standard Accessories

Optional Accessories

C-4212TM

● This series is designed for complex parts of 160mm in diameter and 280mm in length.
● It is equipped with a tailstock to ensure maximum stability of longer workpieces.
● Impressive box-way design for long-term rigidity and machining accuracy during machining.
● This machine is available in either a 8 or 12 station servo or power turret, providing you with highly flexible machining capabilities.
● Fast 0.1 second tool change times to reduce machine idle time and increase productivity.
Specifications

C-428T(S) C-4212T(S) C-4212TM
Model
C-528T(S) C-5212T(S) C-5212TM
Control Unit Controller MITSUBISHI/ FANUC
Max. Turning Dia. mm Ø160 Ø140
Capacity Max. Cutting Length mm 280 250
Swing Over Bed Slide mm Ø420
X-Axis Travel mm 120
Z-Axis Travel mm 350
X-Axis Rapid Travel Speed m/min 12
Axes Travel Z-Axis Rapid Travel Speed m/min 18
M:1.0/1.5 M:1.5/1.5
X/Z-Axes Motor kw
F:1.2/1.2 F:1.6/1.6
Min. Input Unit mm 0.001
Spindle Motor kw M:5.5/7.5, F:7.5/11
Max. Bar Feeding Dia. mm Ø42:Ø42 Ø52:Ø51
Spindle Max. rpm rpm 4000
Spindle Spindle Nose A2-5
Taper of Spindle Bore MT#6
Spindle Collet TRB-42/TRB-52
Spindle Chuck 6"
O.D. Tool Size mm □20
Tooling I.D. Tool Size mm Ø25
No. of Live Tools 8 12
M:220V/16KVA M:220V/18KVA
Power
F:220V/20KVA F:220V/23KVA
Power Hydraulic Motor 1HP/0.75kw
Spindle Upper Flush Pump 3/4HP/0.53kw
Turret Coolant Motor 3/4HP/0.53kw
Hydraulic Tank L 20
Tank Capacity
Coolant Tank L 110
Auto Lubricator 3~6cc/10min
Machine Size (LxWxH) mm 2985x1470x1650
Machine (includes chip conveyor)
Machine N.W. kg 2200 2300 2400
(includes chip conveyor)
