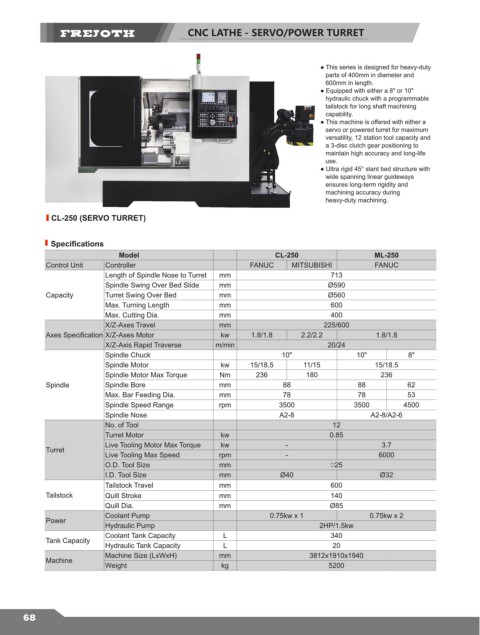

CNC LATHE - SERVO/POWER TURRET

● This series is designed for heavy-duty
parts of 400mm in diameter and
600mm in length.
● Equipped with either a 8" or 10"
hydraulic chuck with a programmable
tailstock for long shaft machining
capability.
● This machine is offered with either a
servo or powered turret for maximum
versatility, 12 station tool capacity and
a 3-disc clutch gear positioning to
maintain high accuracy and long-life
use.
● Ultra rigid 45° slant bed structure with
wide spanning linear guideways
ensures long-term rigidity and
machining accuracy during
heavy-duty machining.

CL-250 (SERVO TURRET)

Specifications
Model CL-250 ML-250
Control Unit Controller FANUC MITSUBISHI FANUC
Length of Spindle Nose to Turret mm 713
Spindle Swing Over Bed Slide mm Ø590
Capacity Turret Swing Over Bed mm Ø560
Max. Turning Length mm 600
Max. Cutting Dia. mm 400
X/Z-Axes Travel mm 225/600
Axes Specification X/Z-Axes Motor kw 1.8/1.8 2.2/2.2 1.8/1.8
X/Z-Axis Rapid Traverse m/min 20/24
Spindle Chuck 10" 10" 8"
Spindle Motor kw 15/18.5 11/15 15/18.5
Spindle Motor Max Torque Nm 236 180 236
Spindle Spindle Bore mm 88 88 62
Max. Bar Feeding Dia. mm 78 78 53
Spindle Speed Range rpm 3500 3500 4500
Spindle Nose A2-8 A2-8/A2-6
No. of Tool 12
Turret Motor kw 0.85
Live Tooling Motor Max Torque kw - 3.7
Turret
Live Tooling Max Speed rpm - 6000
O.D. Tool Size mm □25
I.D. Tool Size mm Ø40 Ø32
Tailstock Travel mm 600
Tailstock Quill Stroke mm 140
Quill Dia. mm Ø85
Coolant Pump 0.75kw x 1 0.75kw x 2
Power
Hydraulic Pump 2HP/1.5kw
Coolant Tank Capacity L 340
Tank Capacity
Hydraulic Tank Capacity L 20
Machine Size (LxWxH) mm 3812x1910x1940
Machine
Weight kg 5200
