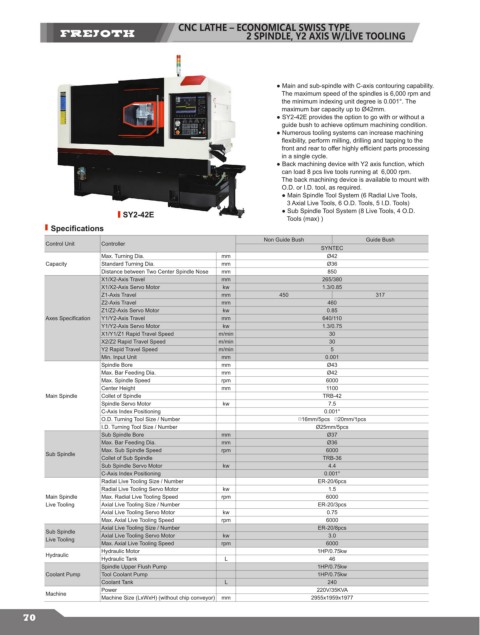

CNC LATHE – ECONOMICAL SWISS TYPE,
2 SPINDLE, Y2 AXIS W/LIVE TOOLING

● Main and sub-spindle with C-axis contouring capability.
The maximum speed of the spindles is 6,000 rpm and
the minimum indexing unit degree is 0.001°. The
maximum bar capacity up to Ø42mm.
● SY2-42E provides the option to go with or without a
guide bush to achieve optimum machining condition.
● Numerous tooling systems can increase machining
flexibility, perform milling, drilling and tapping to the
front and rear to offer highly efficient parts processing
in a single cycle.
● Back machining device with Y2 axis function, which
can load 8 pcs live tools running at 6,000 rpm.
The back machining device is available to mount with
O.D. or I.D. tool, as required.
● Main Spindle Tool System (6 Radial Live Tools,
3 Axial Live Tools, 6 O.D. Tools, 5 I.D. Tools)
SY2-42E ● Sub Spindle Tool System (8 Live Tools, 4 O.D.
Tools (max) )
Specifications
Non Guide Bush Guide Bush
Control Unit Controller
SYNTEC
Max. Turning Dia. mm Ø42
Capacity Standard Turning Dia. mm Ø36
Distance between Two Center Spindle Nose mm 850
X1/X2-Axis Travel mm 265/380
X1/X2-Axis Servo Motor kw 1.3/0.85
Z1-Axis Travel mm 450 317
Z2-Axis Travel mm 460
Z1/Z2-Axis Servo Motor kw 0.85
Axes Specification Y1/Y2-Axis Travel mm 640/110
Y1/Y2-Axis Servo Motor kw 1.3/0.75
X1/Y1/Z1 Rapid Travel Speed m/min 30
X2/Z2 Rapid Travel Speed m/min 30
Y2 Rapid Travel Speed m/min 5
Min. Input Unit mm 0.001
Spindle Bore mm Ø43
Max. Bar Feeding Dia. mm Ø42
Max. Spindle Speed rpm 6000
Center Height mm 1100
Main Spindle Collet of Spindle TRB-42
Spindle Servo Motor kw 7.5
C-Axis Index Positioning 0.001°
O.D. Turning Tool Size / Number □16mm/5pcs □20mm/1pcs
I.D. Turning Tool Size / Number Ø25mm/5pcs
Sub Spindle Bore mm Ø37
Max. Bar Feeding Dia. mm Ø36
Max. Sub Spindle Speed rpm 6000
Sub Spindle
Collet of Sub Spindle TRB-36
Sub Spindle Servo Motor kw 4.4
C-Axis Index Positioning 0.001°
Radial Live Tooling Size / Number ER-20/6pcs
Radial Live Tooling Servo Motor kw 1.5
Main Spindle Max. Radial Live Tooling Speed rpm 6000
Live Tooling Axial Live Tooling Size / Number ER-20/3pcs
Axial Live Tooling Servo Motor kw 0.75
Max. Axial Live Tooling Speed rpm 6000
Axial Live Tooling Size / Number ER-20/8pcs
Sub Spindle Axial Live Tooling Servo Motor kw 3.0
Live Tooling
Max. Axial Live Tooling Speed rpm 6000
Hydraulic Motor 1HP/0.75kw
Hydraulic
Hydraulic Tank L 46
Spindle Upper Flush Pump 1HP/0.75kw
Coolant Pump Tool Coolant Pump 1HP/0.75kw
Coolant Tank L 240
Power 220V/35KVA
Machine
Machine Size (LxWxH) (without chip conveyor) mm 2955x1959x1977
