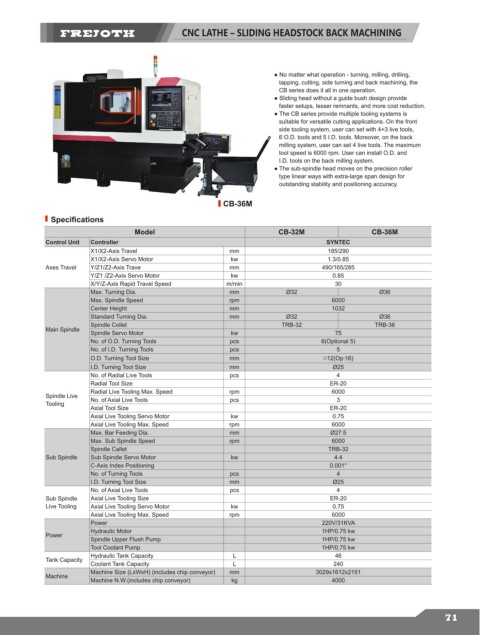

CNC LATHE – SLIDING HEADSTOCK BACK MACHINING

● No matter what operation - turning, milling, drilling,
tapping, cutting, side turning and back machining, the
CB series does it all in one operation.
● Sliding head without a guide bush design provide
faster setups, lesser remnants, and more cost reduction.
● The CB series provide multiple tooling systems is
suitable for versatile cutting applications. On the front
side tooling system, user can set with 4+3 live tools,
6 O.D. tools and 5 I.D. tools. Moreover, on the back
milling system, user can set 4 live tools. The maximum
tool speed is 6000 rpm. User can install O.D. and
I.D. tools on the back milling system.
● The sub-spindle head moves on the precision roller
type linear ways with extra-large span design for
outstanding stability and positioning accuracy.

CB-36M
Specifications
Model CB-32M CB-36M
Control Unit Controller SYNTEC
X1/X2-Axis Travel mm 185/290
X1/X2-Axis Servo Motor kw 1.3/0.85
Axes Travel Y/Z1/Z2-Axis Trave mm 490/165/285
Y/Z1 /Z2-Axis Servo Motor kw 0.85
X/Y/Z-Axis Rapid Travel Speed m/min 30
Max. Turning Dia. mm Ø32 Ø36
Max. Spindle Speed rpm 6000
Center Height mm 1032
Standard Turning Dia. mm Ø32 Ø36
Spindle Collet TRB-32 TRB-36
Main Spindle
Spindle Servo Motor kw 75
No. of O.D. Turning Tools pcs 6(Optional 5)
No. of I.D. Turning Tools pcs 5
O.D. Turning Tool Size mm □12(Op:16)
I.D. Turning Tool Size mm Ø25
No. of Radial Live Tools pcs 4
Radial Tool Size ER-20
Radial Live Tooling Max. Speed rpm 6000
Spindle Live No. of Axial Live Tools pcs 3
Tooling
Axial Tool Size ER-20
Axial Live Tooling Servo Motor kw 0.75
Axial Live Tooling Max. Speed rpm 6000
Max. Bar Feeding Dia. mm Ø27.5
Max. Sub Spindle Speed rpm 6000
Spindle Callet TRB-32
Sub Spindle Sub Spindle Servo Motor kw 4.4
C-Axis Index Positioning 0.001°
No. of Turning Tools pcs 4
I.D. Turning Tool Size mm Ø25
No. of Axial Live Tools pcs 4
Sub Spindle Axial Live Tooling Size ER-20
Live Tooling Axial Live Tooling Servo Motor kw 0.75
Axial Live Tooling Max. Speed rpm 6000
Power 220V/31KVA
Hydraulic Motor 1HP/0.75 kw
Power
Spindle Upper Flush Pump 1HP/0.75 kw
Tool Coolant Pump 1HP/0.75 kw
Hydraulic Tank Capacity L 46
Tank Capacity
Coolant Tank Capacity L 240
Machine Size (LxWxH) (includes chip conveyor) mm 3029x1612x2151
Machine
Machine N.W.(includes chip conveyor) kg 4000
