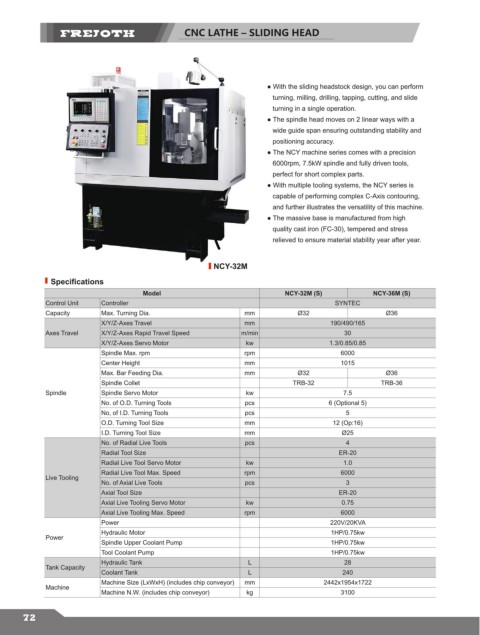

CNC LATHE – SLIDING HEAD

● With the sliding headstock design, you can perform
turning, milling, drilling, tapping, cutting, and slide
turning in a single operation.
● The spindle head moves on 2 linear ways with a
wide guide span ensuring outstanding stability and
positioning accuracy.
● The NCY machine series comes with a precision
6000rpm, 7.5kW spindle and fully driven tools,
perfect for short complex parts.
● With multiple tooling systems, the NCY series is
capable of performing complex C-Axis contouring,
and further illustrates the versatility of this machine.
● The massive base is manufactured from high
quality cast iron (FC-30), tempered and stress
relieved to ensure material stability year after year.

NCY-32M
Specifications
Model NCY-32M (S) NCY-36M (S)
Control Unit Controller SYNTEC
Capacity Max. Turning Dia. mm Ø32 Ø36
X/Y/Z-Axes Travel mm 190/490/165
Axes Travel X/Y/Z-Axes Rapid Travel Speed m/min 30
X/Y/Z-Axes Servo Motor kw 1.3/0.85/0.85
Spindle Max. rpm rpm 6000
Center Height mm 1015
Max. Bar Feeding Dia. mm Ø32 Ø36
Spindle Collet TRB-32 TRB-36
Spindle Spindle Servo Motor kw 7.5
No. of O.D. Turning Tools pcs 6 (Optional 5)
No, of I.D. Turning Tools pcs 5
O.D. Turning Tool Size mm 12 (Op:16)
I.D. Turning Tool Size mm Ø25
No. of Radial Live Tools pcs 4
Radial Tool Size ER-20
Radial Live Tool Servo Motor kw 1.0
Radial Live Tool Max. Speed rpm 6000
Live Tooling
No. of Axial Live Tools pcs 3
Axial Tool Size ER-20
Axial Live Tooling Servo Motor kw 0.75
Axial Live Tooling Max. Speed rpm 6000
Power 220V/20KVA
Hydraulic Motor 1HP/0.75kw
Power
Spindle Upper Coolant Pump 1HP/0.75kw
Tool Coolant Pump 1HP/0.75kw
Hydraulic Tank L 28
Tank Capacity
Coolant Tank L 240
Machine Size (LxWxH) (includes chip conveyor) mm 2442x1954x1722
Machine
Machine N.W. (includes chip conveyor) kg 3100
