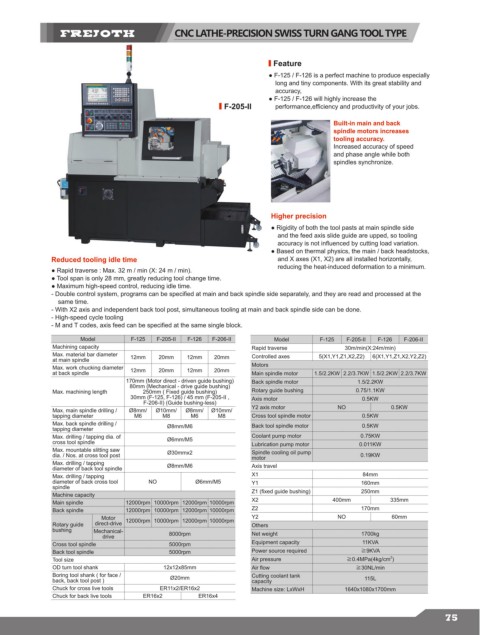

CNC LATHE-PRECISION SWISS TURN GANG TOOL TYPE

Feature
● F-125 / F-126 is a perfect machine to produce especially
long and tiny components. With its great stability and
accuracy,
● F-125 / F-126 will highly increase the
F-205-II performance,efficiency and productivity of your jobs.

Built-in main and back
spindle motors increases
tooling accuracy.
Increased accuracy of speed
and phase angle while both
spindles synchronize.

Higher precision
● Rigidity of both the tool pasts at main spindle side
and the feed axis slide guide are upped, so tooling
accuracy is not influenced by cutting load variation.
● Based on thermal physics, the main / back headstocks,
Reduced tooling idle time and X axes (X1, X2) are all installed horizontally,
reducing the heat-induced deformation to a minimum.
● Rapid traverse : Max. 32 m / min (X: 24 m / min).
● Tool span is only 28 mm, greatly reducing tool change time.
● Maximum high-speed control, reducing idle time.
- Double control system, programs can be specified at main and back spindle side separately, and they are read and processed at the
same time.
- With X2 axis and independent back tool post, simultaneous tooling at main and back spindle side can be done.
- High-speed cycle tooling
- M and T codes, axis feed can be specified at the same single block.

Model F-125 F-205-II F-126 F-206-II Model F-125 F-205-II F-126 F-206-II
Machining capacity Rapid traverse 30m/min(X:24m/min)
Max. material bar diameter 12mm 20mm 12mm 20mm Controlled axes 5(X1,Y1,Z1,X2,Z2) 6(X1,Y1,Z1,X2,Y2,Z2)
at main spindle
Max. work chucking diameter 12mm 20mm 12mm 20mm Motors
at back spindle Main spindle motor 1.5/2.2KW 2.2/3.7KW 1.5/2.2KW 2.2/3.7KW
170mm (Motor direct - driven guide bushing) Back spindle motor 1.5/2.2KW
80mm (Mechanical - drive guide bushing)
Max. machining length 250mm ( Fixed guide bushing) Rotary guide bushing 0.75/1.1KW
30mm (F-125, F-126) / 45 mm (F-205-II , Axis motor 0.5KW
F-206-II) (Guide bushing-less)
Max. main spindle drilling / Ø8mm/ Ø10mm/ Ø8mm/ Ø10mm/ Y2 axis motor NO 0.5KW
tapping diameter M6 M8 M6 M8 Cross tool spindle motor 0.5KW
Max. back spindle drilling / Back tool spindle motor 0.5KW
tapping diameter Ø8mm/M6
Max. drilling / tapping dia. of Ø6mm/M5 Coolant pump motor 0.75KW
cross tool spindle Lubrication pump motor 0.011KW
Max. mountable slitting saw Ø30mmx2 Spindle cooling oil pump
dia. / Nos. at cross tool post motor 0.19KW
Max. drilling / tapping Ø8mm/M6 Axis travel
diameter of back tool spindle
Max. drilling / tapping X1 84mm
diameter of back cross tool NO Ø6mm/M5 Y1 160mm
spindle
Machine capacity Z1 (fixed guide bushing) 250mm
Main spindle 12000rpm 10000rpm 12000rpm 10000rpm X2 400mm 335mm
Back spindle 12000rpm 10000rpm 12000rpm 10000rpm Z2 170mm
Motor 12000rpm 10000rpm 12000rpm 10000rpm Y2 NO 60mm
Rotary guide direct-drive Others
bushing Mechanical-
drive 8000rpm Net weight 1700kg
Cross tool spindle 5000rpm Equipment capacity 11KVA
Back tool spindle 5000rpm Power source required ≧9KVA
2
Tool size Air pressure ≧0.4MPa(4kg/cm )
OD turn tool shank 12x12x85mm Air flow ≧30NL/min
Boring tool shank ( for face / Ø20mm Cutting coolant tank
back, back tool post ) capacity 115L
Chuck for cross live tools ER11x2/ER16x2 Machine size: LxWxH 1640x1080x1700mm
Chuck for back live tools ER16x2 ER16x4
