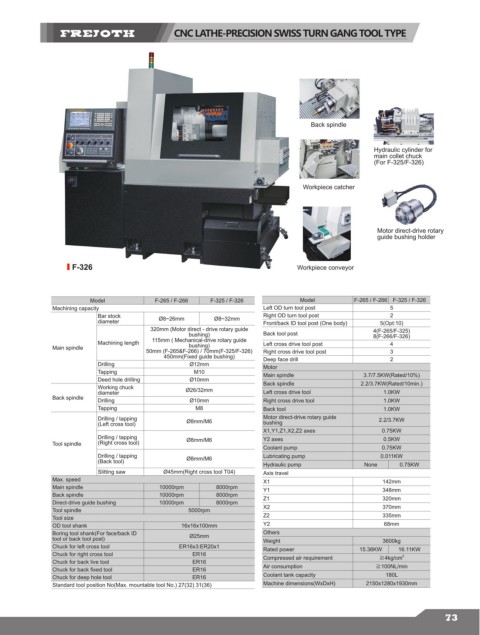

CNC LATHE-PRECISION SWISS TURN GANG TOOL TYPE

Back spindle

Hydraulic cylinder for
main collet chuck
(For F-325/F-326)

Workpiece catcher

Motor direct-drive rotary
guide bushing holder

F-326 Workpiece conveyor

Model F-265 / F-266 F-325 / F-326 Model F-265 / F-266 F-325 / F-326
Machining capacity Left OD turn tool post 5
Bar stock Right OD turn tool post 2
diameter Ø8~26mm Ø8~32mm Front/back ID tool post (One body) 5(Opt:10)
320mm (Motor direct - drive rotary guide 4(F-265/F-325)
bushing) Back tool post 8(F-266/F-326)
Machining length 115mm ( Mechanical-drive rotary guide Left cross drive tool post 4
Main spindle bushing)
50mm (F-265&F-266) / 70mm(F-325/F-326) Right cross drive tool post 3
450mm(Fixed guide bushing) Deep face drill 2
Drilling Ø12mm Motor
Tapping M10 Main spindle 3.7/7.5KW(Rated/10%)
Deed hole drilling Ø10mm Back spindle 2.2/3.7KW(Rated/10min.)
Working chuck Ø26/32mm
diameter Left cross drive tool 1.0KW
Back spindle
Drilling Ø10mm Right cross drive tool 1.0KW
Tapping M8 Back tool 1.0KW
Drilling / tapping Ø8mm/M6 Motor direct-drive rotary guide 2.2/3.7KW
(Left cross tool) bushing
X1,Y1,Z1,X2,Z2 axes 0.75KW
Drilling / tapping Ø8mm/M6 Y2 axes 0.5KW
Tool spindle (Right cross tool)
Coolant pump 0.75KW
Drilling / tapping Lubricating pump 0.011KW
(Back tool) Ø8mm/M6 Hydraulic pump None 0.75KW
Slitting saw Ø45mm(Right cross tool T04) Axis travel
Max. speed X1 142mm
Main spindle 10000rpm 8000rpm Y1 348mm
Back spindle 10000rpm 8000rpm Z1 320mm
Direct-drive guide bushing 10000rpm 8000rpm
Tool spindle 5000rpm X2 370mm
Tool size Z2 335mm
OD tool shank 16x16x100mm Y2 68mm
Boring tool shank(For face/back ID Others
tool or back tool post) Ø25mm Weight 3600kg
Chuck for left cross tool ER16x3:ER20x1 Rated power 15.36KW 16.11KW
Chuck for right cross tool ER16 Compressed air requirement ≧4kg/cm 2
Chuck for back live tool ER16
Chuck for back fixed tool ER16 Air consumption ≧100NL/min
Chuck for deep hole tool ER16 Coolant tank capacity 180L
Standard tool position No(Max. mountable tool No.) 27(32) 31(36) Machine dimensions(WxDxH) 2150x1280x1930mm
