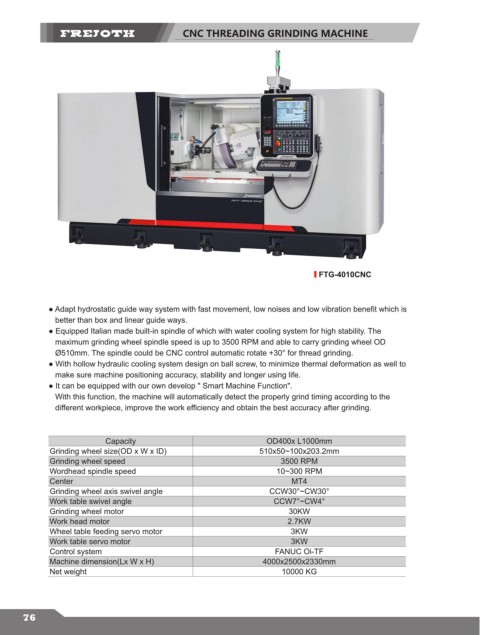

CNC THREADING GRINDING MACHINE

FTG-4010CNC

● Adapt hydrostatic guide way system with fast movement, low noises and low vibration benefit which is
better than box and linear guide ways.
● Equipped Italian made built-in spindle of which with water cooling system for high stability. The
maximum grinding wheel spindle speed is up to 3500 RPM and able to carry grinding wheel OD
Ø510mm. The spindle could be CNC control automatic rotate +30° for thread grinding.
● With hollow hydraulic cooling system design on ball screw, to minimize thermal deformation as well to
make sure machine positioning accuracy, stability and longer using life.
● It can be equipped with our own develop " Smart Machine Function".
With this function, the machine will automatically detect the properly grind timing according to the
different workpiece, improve the work efficiency and obtain the best accuracy after grinding.

Capacity OD400x L1000mm
Grinding wheel size(OD x W x ID) 510x50~100x203.2mm
Grinding wheel speed 3500 RPM
Wordhead spindle speed 10~300 RPM
Center MT4
Grinding wheel axis swivel angle CCW30°~CW30°
Work table swivel angle CCW7°~CW4°
Grinding wheel motor 30KW
Work head motor 2.7KW
Wheel table feeding servo motor 3KW
Work table servo motor 3KW
Control system FANUC Oi-TF
Machine dimension(Lx W x H) 4000x2500x2330mm
Net weight 10000 KG
