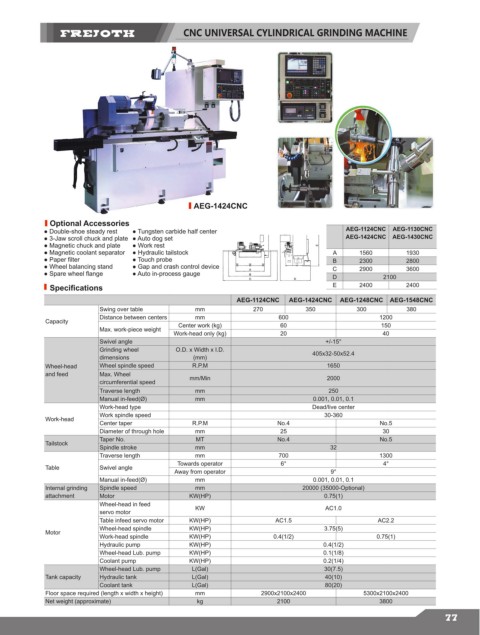

CNC UNIVERSAL CYLINDRICAL GRINDING MACHINE

AEG-1424CNC

Optional Accessories
● Double-shoe steady rest ● Tungsten carbide half center AEG-1124CNC AEG-1130CNC
● 3-Jaw scroll chuck and plate ● Auto dog set AEG-1424CNC AEG-1430CNC
● Magnetic chuck and plate ● Work rest
● Magnetic coolant separator ● Hydraulic tailstock A 1560 1930
● Paper filter ● Touch probe B 2300 2800
● Wheel balancing stand ● Gap and crash control device C 2900 3600
● Spare wheel flange ● Auto in-process gauge D 2100
Specifications E 2400 2400

AEG-1124CNC AEG-1424CNC AEG-1248CNC AEG-1548CNC
Swing over table mm 270 350 300 380
Distance between centers mm 600 1200
Capacity Center work (kg) 60 150
Max. work-piece weight
Work-head only (kg) 20 40
Swivel angle +/-15°
Grinding wheel O.D. x Width x I.D. 405x32-50x52.4
dimensions (mm)
Wheel-head Wheel spindle speed R.P.M 1650
and feed Max. Wheel mm/Min 2000
circumferential speed
Traverse length mm 250
Manual in-feed(Ø) mm 0.001, 0.01, 0.1
Work-head type Dead/live center
Work spindle speed 30-360
Work-head
Center taper R.P.M No.4 No.5
Diameter of through hole mm 25 30
Taper No. MT No.4 No.5
Tailstock
Spindle stroke mm 32
Traverse length mm 700 1300
Towards operator 6° 4°
Table Swivel angle
Away from operator 9°
Manual in-feed(Ø) mm 0.001, 0.01, 0.1
Internal grinding Spindle speed mm 20000 (35000-Optional)
attachment Motor KW(HP) 0.75(1)
Wheel-head in feed KW AC1.0
servo motor
Table infeed servo motor KW(HP) AC1.5 AC2.2
Wheel-head spindle KW(HP) 3.75(5)
Motor
Work-head spindle KW(HP) 0.4(1/2) 0.75(1)
Hydraulic pump KW(HP) 0.4(1/2)
Wheel-head Lub. pump KW(HP) 0.1(1/8)
Coolant pump KW(HP) 0.2(1/4)
Wheel-head Lub. pump L(Gal) 30(7.5)
Tank capacity Hydraulic tank L(Gal) 40(10)
Coolant tank L(Gal) 80(20)
Floor space required (length x width x height) mm 2900x2100x2400 5300x2100x2400
Net weight (approximate) kg 2100 3800
