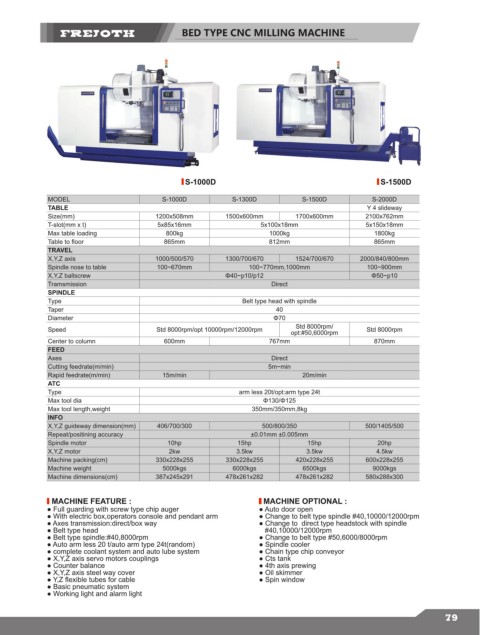

BED TYPE CNC MILLING MACHINE

S-1000D S-1500D
AEG-1248NC
MODEL S-1000D S-1300D S-1500D S-2000D
TABLE Y 4 slideway
Size(mm) 1200x508mm 1500x600mm 1700x600mm 2100x762mm
T-slot(mm x t) 5x85x16mm 5x100x18mm 5x150x18mm
Max table loading 800kg 1000kg 1800kg
Table to floor 865mm 812mm 865mm
TRAVEL
X,Y,Z axis 1000/500/570 1300/700/670 1524/700/670 2000/840/800mm
Spindle nose to table 100~670mm 100~770mm,1000mm 100~900mm
X,Y,Z ballscrew Φ40~p10/p12 Φ50~p10
Tramsmission Direct
SPINDLE
Type Belt type head with spindle
Taper 40
Diameter Φ70
Std 8000rpm/
Speed Std 8000rpm/opt 10000rpm/12000rpm opt:#50,6000rpm Std 8000rpm
Center to column 600mm 767mm 870mm
FEED
Axes Direct
Cutting feedrate(m/min) 5m~min
Rapid feedrate(m/min) 15m/min 20m/min
ATC
Type arm less 20t/opt:arm type 24t
Max tool dia Φ130/Φ125
Max tool length,weight 350mm/350mm,8kg
INFO
X,Y,Z guideway dimension(mm) 406/700/300 500/800/350 500/1405/500
Repeat/positining accuracy ±0.01mm ±0.005mm
Spindle motor 10hp 15hp 15hp 20hp
X,Y,Z motor 2kw 3.5kw 3.5kw 4.5kw
Machine packing(cm) 330x228x255 330x228x255 420x228x255 600x228x255
Machine weight 5000kgs 6000kgs 6500kgs 9000kgs
Machine dimensions(cm) 387x245x291 478x261x282 478x261x282 580x288x300

MACHINE FEATURE : MACHINE OPTIONAL :
● Full guarding with screw type chip auger ● Auto door open
● With electric box,operators console and pendant arm ● Change to belt type spindle #40,10000/12000rpm
● Axes transmission:direct/box way ● Change to direct type headstock with spindle
● Belt type head #40,10000/12000rpm
● Belt type spindle:#40,8000rpm ● Change to belt type #50,6000/8000rpm
● Auto arm less 20 t/auto arm type 24t(random) ● Spindle cooler
● complete coolant system and auto lube system ● Chain type chip conveyor
● X,Y,Z axis servo motors couplings ● Cts tank
● Counter balance ● 4th axis prewing
● X,Y,Z axis steel way cover ● Oil skimmer
● Y,Z flexible tubes for cable ● Spin window
● Basic pneumatic system
● Working light and alarm light

79
