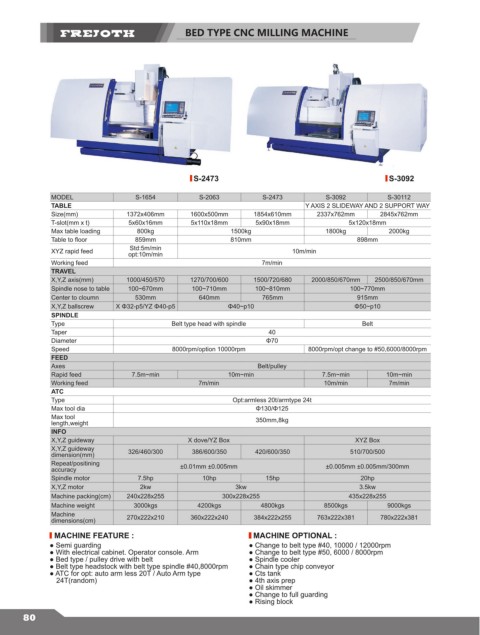

BED TYPE CNC MILLING MACHINE

S-2473 S-3092

MODEL S-1654 S-2063 S-2473 S-3092 S-30112
TABLE Y AXIS 2 SLIDEWAY AND 2 SUPPORT WAY
Size(mm) 1372x406mm 1600x500mm 1854x610mm 2337x762mm 2845x762mm
T-slot(mm x t) 5x60x16mm 5x110x18mm 5x90x18mm 5x120x18mm
Max table loading 800kg 1500kg 1800kg 2000kg
Table to floor 859mm 810mm 898mm
Std:5m/min
XYZ rapid feed opt:10m/min 10m/min
Working feed 7m/min
TRAVEL
X,Y,Z axis(mm) 1000/450/570 1270/700/600 1500/720/680 2000/850/670mm 2500/850/670mm
Spindle nose to table 100~670mm 100~710mm 100~810mm 100~770mm
Center to cloumn 530mm 640mm 765mm 915mm
X,Y,Z ballscrew X Φ32-p5/YZ Φ40-p5 Φ40~p10 Φ50~p10
SPINDLE
Type Belt type head with spindle Belt
Taper 40
Diameter Φ70
Speed 8000rpm/option 10000rpm 8000rpm/opt change to #50,6000/8000rpm
FEED
Axes Belt/pulley
Rapid feed 7.5m~min 10m~min 7.5m~min 10m~min
Working feed 7m/min 10m/min 7m/min
ATC
Type Opt:armless 20t/armtype 24t
Max tool dia Φ130/Φ125
Max tool 350mm,8kg
length,weight
INFO
X,Y,Z guideway X dove/YZ Box XYZ Box
X,Y,Z guideway 326/460/300 386/600/350 420/600/350 510/700/500
dimension(mm)
Repeat/positining ±0.01mm ±0.005mm ±0.005mm ±0.005mm/300mm
accuracy
Spindle motor 7.5hp 10hp 15hp 20hp
X,Y,Z motor 2kw 3kw 3.5kw
Machine packing(cm) 240x228x255 300x228x255 435x228x255
Machine weight 3000kgs 4200kgs 4800kgs 8500kgs 9000kgs
Machine 270x222x210 360x222x240 384x222x255 763x222x381 780x222x381
dimensions(cm)

MACHINE FEATURE : MACHINE OPTIONAL :
● Semi guarding ● Change to belt type #40, 10000 / 12000rpm
● With electrical cabinet. Operator console. Arm ● Change to belt type #50, 6000 / 8000rpm
● Bed type / pulley drive with belt ● Spindle cooler
● Belt type headstock with belt type spindle #40,8000rpm ● Chain type chip conveyor
● ATC for opt: auto arm less 20T / Auto Arm type ● Cts tank
24T(random) ● 4th axis prep
● Oil skimmer
● Change to full guarding
● Rising block
