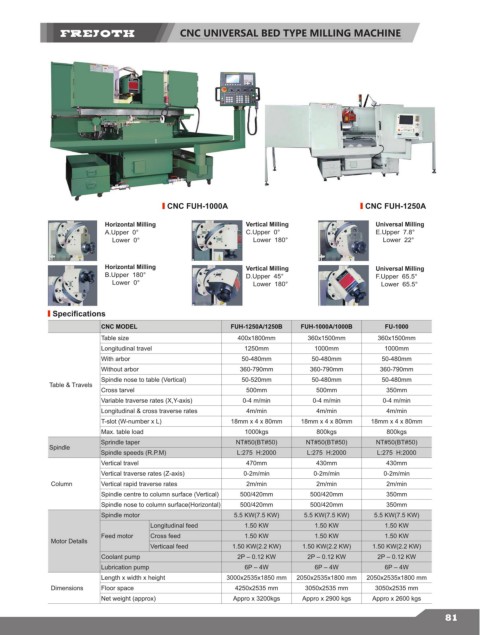

CNC UNIVERSAL BED TYPE MILLING MACHINE

CNC FUH-1000A CNC FUH-1250A

Horizontal Milling Vertical Milling Universal Milling
A.Upper 0° C.Upper 0° E.Upper 7.8°
Lower 0° Lower 180° Lower 22°

Horizontal Milling Vertical Milling Universal Milling
B.Upper 180° D.Upper 45° F.Upper 65.5°
Lower 0° Lower 180° Lower 65.5°

Specifications
CNC MODEL FUH-1250A/1250B FUH-1000A/1000B FU-1000
Table size 400x1800mm 360x1500mm 360x1500mm
Longitudinal travel 1250mm 1000mm 1000mm
With arbor 50-480mm 50-480mm 50-480mm
Without arbor 360-790mm 360-790mm 360-790mm
Spindle nose to table (Vertical) 50-520mm 50-480mm 50-480mm
Table & Travels
Cross tarvel 500mm 500mm 350mm
Variable traverse rates (X,Y-axis) 0-4 m/min 0-4 m/min 0-4 m/min
Longitudinal & cross traverse rates 4m/min 4m/min 4m/min
T-slot (W-number x L) 18mm x 4 x 80mm 18mm x 4 x 80mm 18mm x 4 x 80mm
Max. table load 1000kgs 800kgs 800kgs
Sprindle taper NT#50(BT#50) NT#50(BT#50) NT#50(BT#50)
Spindle
Spindle speeds (R.P.M) L:275 H:2000 L:275 H:2000 L:275 H:2000
Vertical travel 470mm 430mm 430mm
Vertical traverse rates (Z-axis) 0-2m/min 0-2m/min 0-2m/min
Column Vertical rapid traverse rates 2m/min 2m/min 2m/min
Spindle centre to column surface (Vertical) 500/420mm 500/420mm 350mm
Spindle nose to column surface(Horizontal) 500/420mm 500/420mm 350mm
Spindle motor 5.5 KW(7.5 KW) 5.5 KW(7.5 KW) 5.5 KW(7.5 KW)
Longitudinal feed 1.50 KW 1.50 KW 1.50 KW
Feed motor Cross feed 1.50 KW 1.50 KW 1.50 KW
Motor Detalls
Verticaal feed 1.50 KW(2.2 KW) 1.50 KW(2.2 KW) 1.50 KW(2.2 KW)
Coolant pump 2P – 0.12 KW 2P – 0.12 KW 2P – 0.12 KW
Lubrication pump 6P – 4W 6P – 4W 6P – 4W
Length x width x height 3000x2535x1850 mm 2050x2535x1800 mm 2050x2535x1800 mm
Dimensions Floor space 4250x2535 mm 3050x2535 mm 3050x2535 mm
Net weight (approx) Appro x 3200kgs Appro x 2900 kgs Appro x 2600 kgs
