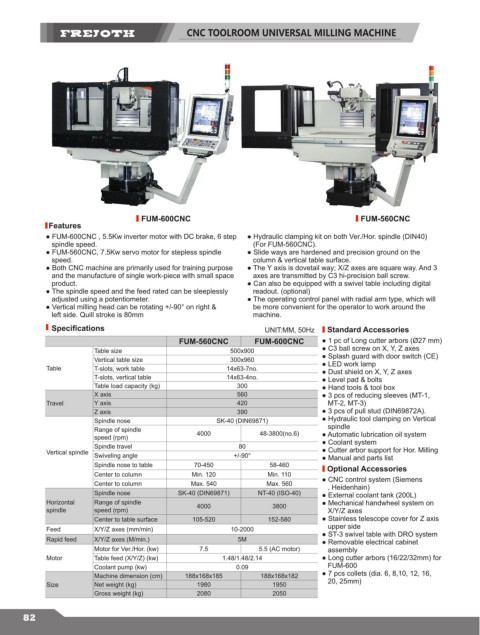

CNC TOOLROOM UNIVERSAL MILLING MACHINE

FUM-600CNC FUM-560CNC
Features
● FUM-600CNC , 5.5Kw inverter motor with DC brake, 6 step ● Hydraulic clamping kit on both Ver./Hor. spindle (DIN40)
spindle speed. (For FUM-560CNC).
● FUM-560CNC, 7.5Kw servo motor for stepless spindle ● Slide ways are hardened and precision ground on the
speed. column & vertical table surface.
● Both CNC machine are primarily used for training purpose ● The Y axis is dovetail way; X/Z axes are square way. And 3
and the manufacture of single work-piece with small space axes are transmitted by C3 hi-precision ball screw.
product. ● Can also be equipped with a swivel table including digital
● The spindle speed and the feed rated can be sleeplessly readout. (optional)
adjusted using a potentiometer. ● The operating control panel with radial arm type, which will
● Vertical milling head can be rotating +/-90° on right & be more convenient for the operator to work around the
left side. Quill stroke is 80mm machine.

Specifications UNIT:MM, 50Hz Standard Accessories
FUM-560CNC FUM-600CNC ● 1 pc of Long cutter arbors (Ø27 mm)
Table size 500x900 ● C3 ball screw on X, Y, Z axes
Vertical table size 300x960 ● Splash guard with door switch (CE)
● LED work lamp
Table T-slots, work table 14x63-7no. ● Dust shield on X, Y, Z axes
T-slots, vertical table 14x63-4no. ● Level pad & bolts
Table load capacity (kg) 300 ● Hand tools & tool box
X axis 560 ● 3 pcs of reducing sleeves (MT-1,
Travel Y axis 420 MT-2, MT-3)
Z axis 390 ● 3 pcs of pull stud (DIN69872A).
Spindle nose SK-40 (DIN69871) ● Hydraulic tool clamping on Vertical
Range of spindle 4000 48-3800(no.6) spindle
speed (rpm) ● Automatic lubrication oil system
● Coolant system
Spindle travel 80
Vertical spindle ● Cutter arbor support for Hor. Milling
Swiveling angle +/-90° ● Manual and parts list
Spindle nose to table 70-450 58-460 Optional Accessories
Center to column Min. 120 Min. 110 ● CNC control system (Siemens
Center to column Max. 540 Max. 560 , Heidenhain)
Spindle nose SK-40 (DIN69871) NT-40 (ISO-40) ● External coolant tank (200L)
Horizontal Range of spindle 4000 3800 ● Mechanical handwheel system on
spindle speed (rpm) X/Y/Z axes
Center to table surface 105-520 152-580 ● Stainless telescope cover for Z axis
Feed X/Y/Z axes (mm/min) 10-2000 upper side
● ST-3 swivel table with DRO system
Rapid feed X/Y/Z axes (M/min.) 5M ● Removable electrical cabinet
Motor for Ver./Hor. (kw) 7.5 5.5 (AC motor) assembly
Motor Table feed (X/Y/Z) (kw) 1.48/1.48/2.14 ● Long cutter arbors (16/22/32mm) for
Coolant pump (kw) 0.09 FUM-600
Machine dimension (cm) 188x168x185 188x168x182 ● 7 pcs collets (dia. 6, 8,10, 12, 16,
Size Net weight (kg) 1980 1950 20, 25mm)
Gross weight (kg) 2080 2050
