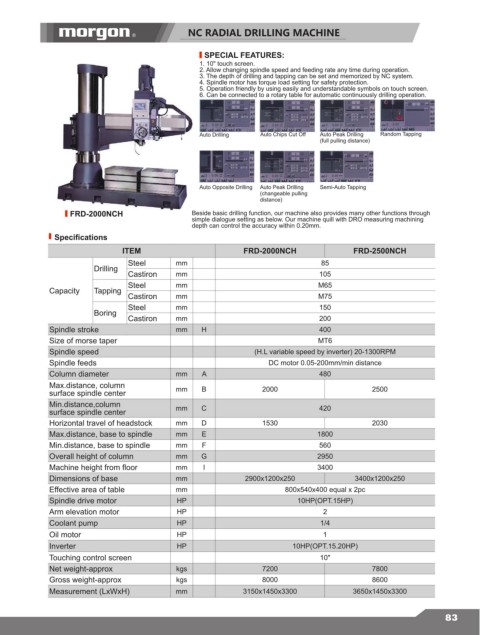

NC RADIAL DRILLING MACHINE

SPECIAL FEATURES:
1. 10" touch screen.
2. Allow changing spindle speed and feeding rate any time during operation.
3. The depth of drilling and tapping can be set and memorized by NC system.
4. Spindle motor has torque load setting for safety protection.
5. Operation friendly by using easily and understandable symbols on touch screen.
6. Can be connected to a rotary table for automatic continuously drilling operation.

Auto Drilling Auto Chips Cut Off Auto Peak Drilling Random Tapping
(full pulling distance)

Auto Opposite Drilling Auto Peak Drilling Semi-Auto Tapping
(changeable pulling
distance)
FRD-2000NCH Beside basic drilling function, our machine also provides many other functions through
simple dialogue setting as below. Our machine quill with DRO measuring machining
depth can control the accuracy within 0.20mm.
Specifications
ITEM FRD-2000NCH FRD-2500NCH
Steel mm 85
Drilling
Castiron mm 105
Steel mm M65
Capacity Tapping
Castiron mm M75
Steel mm 150
Boring
Castiron mm 200
Standard Accessories Spindle stroke mm H 400
Size of morse taper MT6
Spindle speed (H.L variable speed by inverter) 20-1300RPM
Spindle feeds DC motor 0.05-200mm/min distance
Column diameter mm A 480
Max.distance, column mm B 2000 2500
surface spindle center
Min.distance,column mm C 420
surface spindle center
Horizontal travel of headstock mm D 1530 2030
Max.distance, base to spindle mm E 1800
Min.distance, base to spindle mm F 560
Overall height of column mm G 2950
Optional Accessories Machine height from floor mm I 3400
Dimensions of base mm 2900x1200x250 3400x1200x250
Effective area of table mm 800x540x400 equal x 2pc
Spindle drive motor HP 10HP(OPT.15HP)
Arm elevation motor HP 2
Coolant pump HP 1/4
Oil motor HP 1
Inverter HP 10HP(OPT.15.20HP)
Touching control screen 10"
Net weight-approx kgs 7200 7800
Gross weight-approx kgs 8000 8600
Measurement (LxWxH) mm 3150x1450x3300 3650x1450x3300
