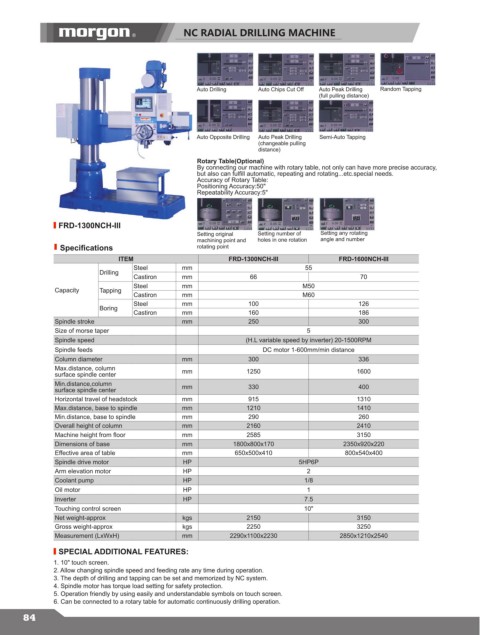

NC RADIAL DRILLING MACHINE
Auto Drilling Auto Chips Cut Off Auto Peak Drilling Random Tapping
(full pulling distance)
Auto Opposite Drilling Auto Peak Drilling Semi-Auto Tapping
(changeable pulling
distance)
Rotary Table(Optional)
By connecting our machine with rotary table, not only can have more precise accuracy,
but also can fulfill automatic, repeating and rotating...etc.special needs.
Accuracy of Rotary Table:
Positioning Accuracy:50"
Repeatability Accuracy:5"
FRD-1300NCH-III
Setting original Setting number of Setting any rotating
machining point and holes in one rotation angle and number
Specifications rotating point
ITEM FRD-1300NCH-III FRD-1600NCH-III
Steel mm 55
Drilling
Castiron mm 66 70
Steel mm M50
Capacity Tapping
Castiron mm M60
Steel mm 100 126
Boring
Castiron mm 160 186
Spindle stroke mm 250 300
Size of morse taper 5
Spindle speed (H.L variable speed by inverter) 20-1500RPM
Spindle feeds DC motor 1-600mm/min distance
Column diameter mm 300 336
Max.distance, column mm 1250 1600
surface spindle center
Min.distance,column mm 330 400
surface spindle center
Horizontal travel of headstock mm 915 1310
Max.distance, base to spindle mm 1210 1410
Min.distance, base to spindle mm 290 260
Overall height of column mm 2160 2410
Machine height from floor mm 2585 3150
Dimensions of base mm 1800x800x170 2350x920x220
Effective area of table mm 650x500x410 800x540x400
Spindle drive motor HP 5HP6P
Arm elevation motor HP 2
Coolant pump HP 1/8
Oil motor HP 1
Inverter HP 7.5
Touching control screen 10"
Net weight-approx kgs 2150 3150
Gross weight-approx kgs 2250 3250
Measurement (LxWxH) mm 2290x1100x2230 2850x1210x2540
SPECIAL ADDITIONAL FEATURES:
1. 10" touch screen.
2. Allow changing spindle speed and feeding rate any time during operation.
3. The depth of drilling and tapping can be set and memorized by NC system.
4. Spindle motor has torque load setting for safety protection.
5. Operation friendly by using easily and understandable symbols on touch screen.
6. Can be connected to a rotary table for automatic continuously drilling operation.
