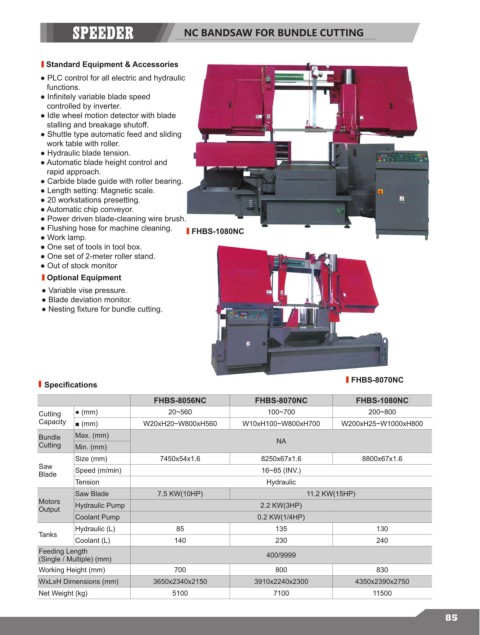

NC BANDSAW FOR BUNDLE CUTTING

Standard Equipment & Accessories

● PLC control for all electric and hydraulic
functions.
● Infinitely variable blade speed
controlled by inverter.
● Idle wheel motion detector with blade
stalling and breakage shutoff.
● Shuttle type automatic feed and sliding
work table with roller.
● Hydraulic blade tension.
● Automatic blade height control and
rapid approach.
● Carbide blade guide with roller bearing.
● Length setting: Magnetic scale.
● 20 workstations presetting.
● Automatic chip conveyor.
● Power driven blade-cleaning wire brush.
● Flushing hose for machine cleaning. FHBS-1080NC
● Work lamp.
● One set of tools in tool box.
● One set of 2-meter roller stand.
● Out of stock monitor
Optional Equipment
● Variable vise pressure.
● Blade deviation monitor.
● Nesting fixture for bundle cutting.

FHBS-8070NC
Specifications
FHBS-8056NC FHBS-8070NC FHBS-1080NC
Cutting ● (mm) 20~560 100~700 200~800
Capacity ■ (mm) W20xH20~W800xH560 W10xH100~W800xH700 W200xH25~W1000xH800

Bundle Max. (mm) NA
Cutting Min. (mm)
Size (mm) 7450x54x1.6 8250x67x1.6 8800x67x1.6
Saw Speed (m/min) 16~85 (INV.)
Blade
Tension Hydraulic
Saw Blade 7.5 KW(10HP) 11.2 KW(15HP)
Motors Hydraulic Pump 2.2 KW(3HP)
Output
Coolant Pump 0.2 KW(1/4HP)
Hydraulic (L) 85 135 130
Tanks
Coolant (L) 140 230 240
Feeding Length 400/9999
(Single / Multiple) (mm)
Working Height (mm) 700 800 830
WxLxH Dimensions (mm) 3650x2340x2150 3910x2240x2300 4350x2390x2750
Net Weight (kg) 5100 7100 11500
