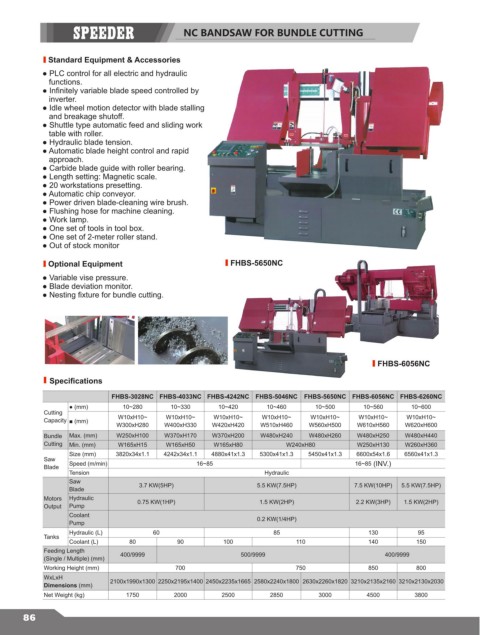

NC BANDSAW FOR BUNDLE CUTTING

Standard Equipment & Accessories
● PLC control for all electric and hydraulic
functions.
● Infinitely variable blade speed controlled by
inverter.
● Idle wheel motion detector with blade stalling
and breakage shutoff.
● Shuttle type automatic feed and sliding work
table with roller.
● Hydraulic blade tension.
● Automatic blade height control and rapid
approach.
● Carbide blade guide with roller bearing.
● Length setting: Magnetic scale.
● 20 workstations presetting.
● Automatic chip conveyor.
● Power driven blade-cleaning wire brush.
● Flushing hose for machine cleaning.
● Work lamp.
● One set of tools in tool box.
● One set of 2-meter roller stand.
● Out of stock monitor

Optional Equipment FHBS-5650NC
● Variable vise pressure.
● Blade deviation monitor.
● Nesting fixture for bundle cutting.

FHBS-6056NC

Specifications

FHBS-3028NC FHBS-4033NC FHBS-4242NC FHBS-5046NC FHBS-5650NC FHBS-6056NC FHBS-6260NC
● (mm) 10~280 10~330 10~420 10~460 10~500 10~560 10~600
Cutting
Capacity ■ (mm) W10xH10~ W10xH10~ W10xH10~ W10xH10~ W10xH10~ W10xH10~ W10xH10~
W300xH280 W400xH330 W420xH420 W510xH460 W560xH500 W610xH560 W620xH600
Bundle Max. (mm) W250xH100 W370xH170 W370xH200 W480xH240 W480xH260 W480xH250 W480xH440
Cutting Min. (mm) W165xH15 W165xH50 W165xH80 W240xH80 W250xH130 W260xH360
Size (mm) 3820x34x1.1 4242x34x1.1 4880x41x1.3 5300x41x1.3 5450x41x1.3 6600x54x1.6 6560x41x1.3
Saw 16~85 (INV.)
Blade Speed (m/min) 16~85
Tension Hydraulic
Saw 3.7 KW(5HP) 5.5 KW(7.5HP) 7.5 KW(10HP) 5.5 KW(7.5HP)
Blade
Motors Hydraulic 0.75 KW(1HP) 1.5 KW(2HP) 2.2 KW(3HP) 1.5 KW(2HP)
Output Pump
Coolant 0.2 KW(1/4HP)
Pump
Hydraulic (L) 60 85 130 95
Tanks
Coolant (L) 80 90 100 110 140 150
Feeding Length 400/9999 500/9999 400/9999
(Single / Multiple) (mm)
Working Height (mm) 700 750 850 800
WxLxH 2100x1990x1300 2250x2195x1400 2450x2235x1665 2580x2240x1800 2630x2260x1820 3210x2135x2160 3210x2130x2030
Dimensions (mm)
Net Weight (kg) 1750 2000 2500 2850 3000 4500 3800
