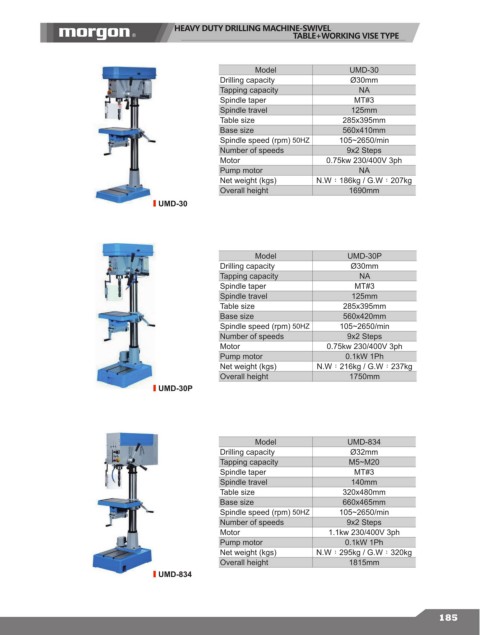

HEAVY DUTY DRILLING MACHINE-SWIVEL
TABLE+WORKING VISE TYPE

Model UMD-30
Drilling capacity Ø30mm
Tapping capacity NA
Spindle taper MT#3
Spindle travel 125mm
Table size 285x395mm
Base size 560x410mm
Spindle speed (rpm) 50HZ 105~2650/min
Number of speeds 9x2 Steps
Motor 0.75kw 230/400V 3ph
Pump motor NA
Net weight (kgs) N.W：186kg / G.W：207kg
Overall height 1690mm
UMD-30

Model UMD-30P
Drilling capacity Ø30mm
Tapping capacity NA
Spindle taper MT#3
Spindle travel 125mm
Table size 285x395mm
Base size 560x420mm
Spindle speed (rpm) 50HZ 105~2650/min
Number of speeds 9x2 Steps
Motor 0.75kw 230/400V 3ph
Pump motor 0.1kW 1Ph
Net weight (kgs) N.W：216kg / G.W：237kg
Overall height 1750mm
UMD-30P

Model UMD-834
Drilling capacity Ø32mm
Tapping capacity M5~M20
Spindle taper MT#3
Spindle travel 140mm
Table size 320x480mm
Base size 660x465mm
Spindle speed (rpm) 50HZ 105~2650/min
Number of speeds 9x2 Steps
Motor 1.1kw 230/400V 3ph
Pump motor 0.1kW 1Ph
Net weight (kgs) N.W：295kg / G.W：320kg
Overall height 1815mm
UMD-834
