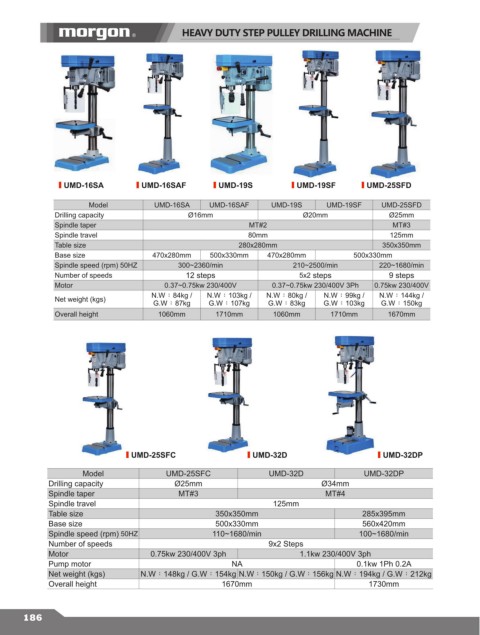

HEAVY DUTY STEP PULLEY DRILLING MACHINE

UMD-16SA UMD-16SAF UMD-19S UMD-19SF UMD-25SFD

Model UMD-16SA UMD-16SAF UMD-19S UMD-19SF UMD-25SFD
Drilling capacity Ø16mm Ø20mm Ø25mm
Spindle taper MT#2 MT#3
Spindle travel 80mm 125mm
Table size 280x280mm 350x350mm
Base size 470x280mm 500x330mm 470x280mm 500x330mm
Spindle speed (rpm) 50HZ 300~2360/min 210~2500/min 220~1680/min
Number of speeds 12 steps 5x2 steps 9 steps
Motor 0.37~0.75kw 230/400V 0.37~0.75kw 230/400V 3Ph 0.75kw 230/400V
N.W：84kg / N.W：103kg / N.W：80kg / N.W：99kg / N.W：144kg /
Net weight (kgs)
G.W：87kg G.W：107kg G.W：83kg G.W：103kg G.W：150kg
Overall height 1060mm 1710mm 1060mm 1710mm 1670mm

UMD-25SFC UMD-32D UMD-32DP

Model UMD-25SFC UMD-32D UMD-32DP
Drilling capacity Ø25mm Ø34mm
Spindle taper MT#3 MT#4
Spindle travel 125mm
Table size 350x350mm 285x395mm
Base size 500x330mm 560x420mm
Spindle speed (rpm) 50HZ 110~1680/min 100~1680/min
Number of speeds 9x2 Steps
Motor 0.75kw 230/400V 3ph 1.1kw 230/400V 3ph
Pump motor NA 0.1kw 1Ph 0.2A
Net weight (kgs) N.W：148kg / G.W：154kg N.W：150kg / G.W：156kg N.W：194kg / G.W：212kg
Overall height 1670mm 1730mm
