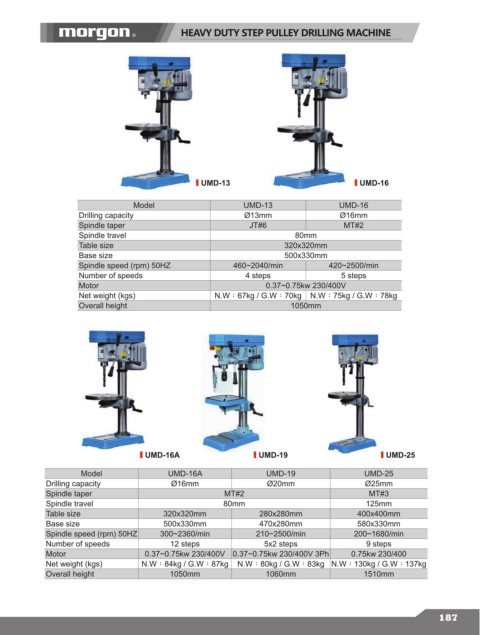

HEAVY DUTY STEP PULLEY DRILLING MACHINE

UMD-13 UMD-16

Model UMD-13 UMD-16
Drilling capacity Ø13mm Ø16mm
Spindle taper JT#6 MT#2
Spindle travel 80mm
Table size 320x320mm
Base size 500x330mm
Spindle speed (rpm) 50HZ 460~2040/min 420~2500/min
Number of speeds 4 steps 5 steps
Motor 0.37~0.75kw 230/400V
Net weight (kgs) N.W：67kg / G.W：70kg N.W：75kg / G.W：78kg
Overall height 1050mm

UMD-16A UMD-19 UMD-25

Model UMD-16A UMD-19 UMD-25
Drilling capacity Ø16mm Ø20mm Ø25mm
Spindle taper MT#2 MT#3
Spindle travel 80mm 125mm
Table size 320x320mm 280x280mm 400x400mm
Base size 500x330mm 470x280mm 580x330mm
Spindle speed (rpm) 50HZ 300~2360/min 210~2500/min 200~1680/min
Number of speeds 12 steps 5x2 steps 9 steps
Motor 0.37~0.75kw 230/400V 0.37~0.75kw 230/400V 3Ph 0.75kw 230/400
Net weight (kgs) N.W：84kg / G.W：87kg N.W：80kg / G.W：83kg N.W：130kg / G.W：137kg
Overall height 1050mm 1060mm 1510mm
