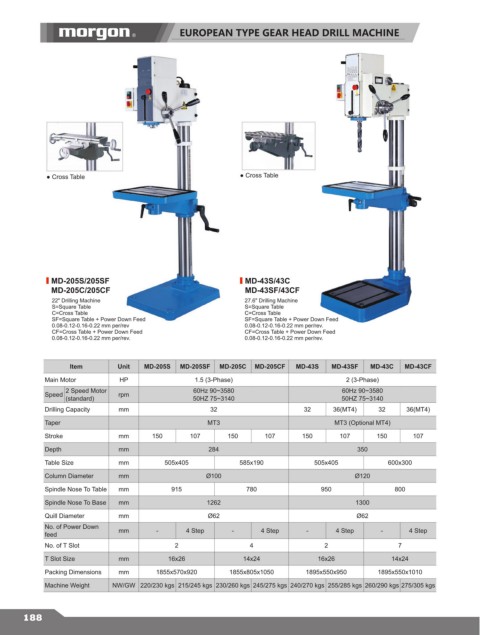

EUROPEAN TYPE GEAR HEAD DRILL MACHINE

● Cross Table ● Cross Table

MD-205S/205SF MD-43S/43C
MD-205C/205CF MD-43SF/43CF
22" Drilling Machine 27.6" Drilling Machine
S=Square Table S=Square Table
C=Cross Table C=Cross Table
SF=Square Table + Power Down Feed SF=Square Table + Power Down Feed
0.08-0.12-0.16-0.22 mm per/rev 0.08-0.12-0.16-0.22 mm per/rev.
CF=Cross Table + Power Down Feed CF=Cross Table + Power Down Feed
0.08-0.12-0.16-0.22 mm per/rev. 0.08-0.12-0.16-0.22 mm per/rev.

ltem Unit MD-205S MD-205SF MD-205C MD-205CF MD-43S MD-43SF MD-43C MD-43CF
Main Motor HP 1.5 (3-Phase) 2 (3-Phase)
2 Speed Motor 60Hz 90~3580 60Hz 90~3580
Speed rpm
(standard) 50HZ 75~3140 50HZ 75~3140
Drilling Capacity mm 32 32 36(MT4) 32 36(MT4)
Taper MT3 MT3 (Optional MT4)
Stroke mm 150 107 150 107 150 107 150 107
Depth mm 284 350
Table Size mm 505x405 585x190 505x405 600x300
Column Diameter mm Ø100 Ø120
Spindle Nose To Table mm 915 780 950 800

Spindle Nose To Base mm 1262 1300
Quill Diameter mm Ø62 Ø62
No. of Power Down mm - 4 Step - 4 Step - 4 Step - 4 Step
feed
No. of T Slot 2 4 2 7
T Slot Size mm 16x26 14x24 16x26 14x24

Packing Dimensions mm 1855x570x920 1855x805x1050 1895x550x950 1895x550x1010
Machine Weight NW/GW 220/230 kgs 215/245 kgs 230/260 kgs 245/275 kgs 240/270 kgs 255/285 kgs 260/290 kgs 275/305 kgs
