P. 231

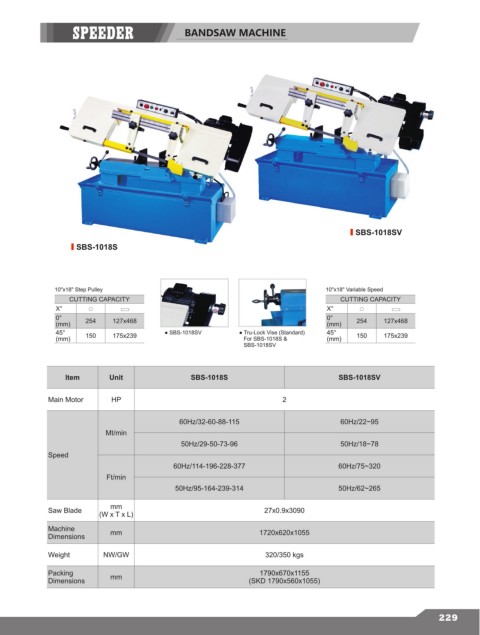

BANDSAW MACHINE
SBS-1018SV
SBS-1018S
10"x18" Step Pulley 10"x18" Variable Speed
CUTTING CAPACITY CUTTING CAPACITY
X° X°
0° 254 127x468 0° 254 127x468
(mm) (mm)
45° 150 175x239 ● SBS-1018SV ● Tru-Lock Vise (Standard) 45° 150 175x239
(mm) For SBS-1018S & (mm)
SBS-1018SV
ltem Unit SBS-1018S SBS-1018SV
Main Motor HP 2
60Hz/32-60-88-115 60Hz/22~95
Mt/min
50Hz/29-50-73-96 50Hz/18~78
Speed
60Hz/114-196-228-377 60Hz/75~320
Ft/min
50Hz/95-164-239-314 50Hz/62~265
mm
Saw Blade 27x0.9x3090
(W x T x L)
Machine mm 1720x620x1055
Dimensions
Weight NW/GW 320/350 kgs
Packing mm 1790x670x1155
Dimensions (SKD 1790x560x1055)
229
