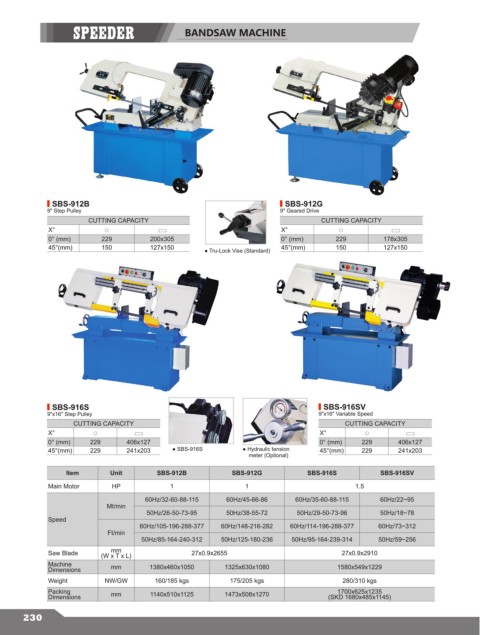

BANDSAW MACHINE

SBS-912B SBS-912G
9" Step Pulley 9" Geared Drive
CUTTING CAPACITY CUTTING CAPACITY
X° X°
0° (mm) 229 200x305 0° (mm) 229 178x305
45°(mm) 150 127x150 ● Tru-Lock Vise (Standard) 45°(mm) 150 127x150

SBS-916S SBS-916SV
9"x16" Step Pulley 9"x16" Variable Speed
CUTTING CAPACITY CUTTING CAPACITY
X° X°
0° (mm) 229 406x127 0° (mm) 229 406x127
45°(mm) 229 241x203 ● SBS-916S ● Hydraulic tension 45°(mm) 229 241x203
meter (Optional)
ltem Unit SBS-912B SBS-912G SBS-916S SBS-916SV
Main Motor HP 1 1 1.5
60Hz/32-60-88-115 60Hz/45-66-86 60Hz/35-60-88-115 60Hz/22~95
Mt/min
50Hz/26-50-73-95 50Hz/38-55-72 50Hz/29-50-73-96 50Hz/18~78
Speed
60Hz/105-196-288-377 60Hz/148-216-282 60Hz/114-196-288-377 60Hz/73~312
Ft/min
50Hz/85-164-240-312 50Hz/125-180-236 50Hz/95-164-239-314 50Hz/59~256
mm
Saw Blade (W x T x L) 27x0.9x2655 27x0.9x2910
Machine
Dimensions mm 1380x460x1050 1325x630x1080 1580x549x1229
Weight NW/GW 160/185 kgs 175/205 kgs 280/310 kgs
Packing 1700x625x1235
Dimensions mm 1140x510x1125 1473x508x1270 (SKD 1680x485x1145)
