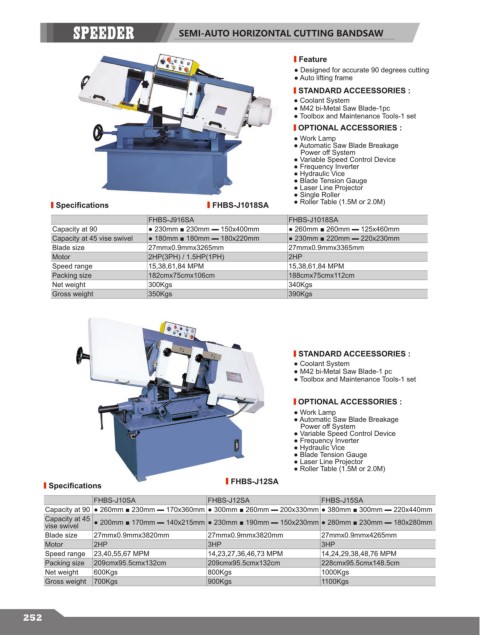

Page 254 - metal2022

SEMI-AUTO HORIZONTAL CUTTING BANDSAW

Feature
● Designed for accurate 90 degrees cutting
● Auto lifting frame
STANDARD ACCEESSORIES :
● Coolant System
● M42 bi-Metal Saw Blade-1pc
● Toolbox and Maintenance Tools-1 set
OPTIONAL ACCESSORIES :
● Work Lamp
● Automatic Saw Blade Breakage
Power off System
● Variable Speed Control Device
● Frequency Inverter
● Hydraulic Vice
● Blade Tension Gauge
● Laser Line Projector
● Single Roller
Specifications FHBS-J1018SA ● Roller Table (1.5M or 2.0M)
FHBS-J916SA FHBS-J1018SA
Capacity at 90 ● 230mm ■ 230mm ▬ 150x400mm ● 260mm ■ 260mm ▬ 125x460mm
Capacity at 45 vise swivel ● 180mm ■ 180mm ▬ 180x220mm ● 230mm ■ 220mm ▬ 220x230mm
Blade size 27mmx0.9mmx3265mm 27mmx0.9mmx3365mm
Motor 2HP(3PH) / 1.5HP(1PH) 2HP
Speed range 15,38,61,84 MPM 15,38,61,84 MPM
Packing size 182cmx75cmx106cm 188cmx75cmx112cm
Net weight 300Kgs 340Kgs
Gross weight 350Kgs 390Kgs

STANDARD ACCEESSORIES :
● Coolant System
● M42 bi-Metal Saw Blade-1 pc
● Toolbox and Maintenance Tools-1 set

OPTIONAL ACCESSORIES :
● Work Lamp
● Automatic Saw Blade Breakage
Power off System
● Variable Speed Control Device
● Frequency Inverter
● Hydraulic Vice
● Blade Tension Gauge
● Laser Line Projector
● Roller Table (1.5M or 2.0M)

Specifications FHBS-J12SA
FHBS-J10SA FHBS-J12SA FHBS-J15SA
Capacity at 90 ● 260mm ■ 230mm ▬ 170x360mm ● 300mm ■ 260mm ▬ 200x330mm ● 380mm ■ 300mm ▬ 220x440mm
Capacity at 45 ● 200mm ■ 170mm ▬ 140x215mm ● 230mm ■ 190mm ▬ 150x230mm ● 280mm ■ 230mm ▬ 180x280mm
vise swivel
Blade size 27mmx0.9mmx3820mm 27mmx0.9mmx3820mm 27mmx0.9mmx4265mm
Motor 2HP 3HP 3HP
Speed range 23,40,55,67 MPM 14,23,27,36,46,73 MPM 14,24,29,38,48,76 MPM
Packing size 209cmx95.5cmx132cm 209cmx95.5cmx132cm 228cmx95.5cmx148.5cm
Net weight 600Kgs 800Kgs 1000Kgs
Gross weight 700Kgs 900Kgs 1100Kgs

252
