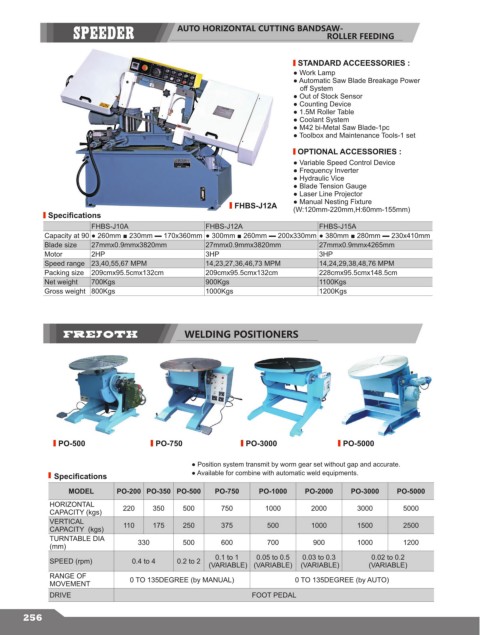

AUTO HORIZONTAL CUTTING BANDSAW-
ROLLER FEEDING

STANDARD ACCEESSORIES :
● Work Lamp
● Automatic Saw Blade Breakage Power
off System
● Out of Stock Sensor
● Counting Device
● 1.5M Roller Table
● Coolant System
● M42 bi-Metal Saw Blade-1pc
● Toolbox and Maintenance Tools-1 set
OPTIONAL ACCESSORIES :
● Variable Speed Control Device
● Frequency Inverter
● Hydraulic Vice
● Blade Tension Gauge
● Laser Line Projector
FHBS-J12A ● Manual Nesting Fixture
(W:120mm-220mm,H:60mm-155mm)
Specifications
FHBS-J10A FHBS-J12A FHBS-J15A
Capacity at 90 ● 260mm ■ 230mm ▬ 170x360mm ● 300mm ■ 260mm ▬ 200x330mm ● 380mm ■ 280mm ▬ 230x410mm
Blade size 27mmx0.9mmx3820mm 27mmx0.9mmx3820mm 27mmx0.9mmx4265mm
Motor 2HP 3HP 3HP
Speed range 23,40,55,67 MPM 14,23,27,36,46,73 MPM 14,24,29,38,48,76 MPM
Packing size 209cmx95.5cmx132cm 209cmx95.5cmx132cm 228cmx95.5cmx148.5cm
Net weight 700Kgs 900Kgs 1100Kgs
Gross weight 800Kgs 1000Kgs 1200Kgs

WELDING POSITIONERS

PO-500 PO-750 PO-3000 PO-5000

● Position system transmit by worm gear set without gap and accurate.
Specifications ● Available for combine with automatic weld equipments.

MODEL PO-200 PO-350 PO-500 PO-750 PO-1000 PO-2000 PO-3000 PO-5000
HORIZONTAL 220 350 500 750 1000 2000 3000 5000
CAPACITY (kgs)
VERTICAL 110 175 250 375 500 1000 1500 2500
CAPACITY (kgs)
TURNTABLE DIA 330 500 600 700 900 1000 1200
(mm)
0.1 to 1 0.05 to 0.5 0.03 to 0.3 0.02 to 0.2
SPEED (rpm) 0.4 to 4 0.2 to 2
(VARIABLE) (VARIABLE) (VARIABLE) (VARIABLE)
RANGE OF 0 TO 135DEGREE (by MANUAL) 0 TO 135DEGREE (by AUTO)
MOVEMENT
DRIVE FOOT PEDAL

256
