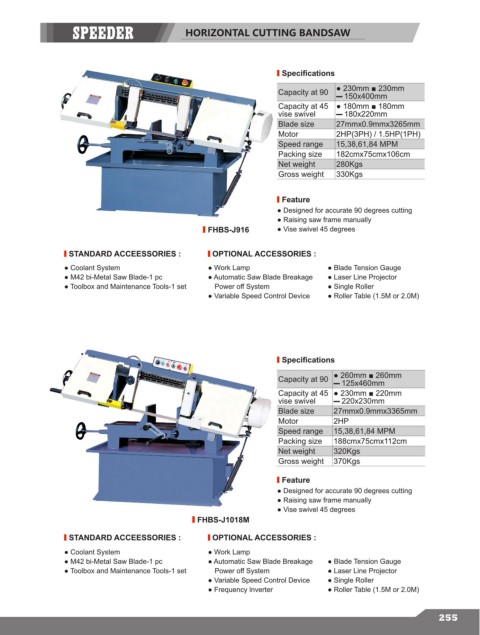

HORIZONTAL CUTTING BANDSAW

Specifications

Capacity at 90 ● 230mm ■ 230mm
▬ 150x400mm
Capacity at 45 ● 180mm ■ 180mm
vise swivel ▬ 180x220mm
Blade size 27mmx0.9mmx3265mm
Motor 2HP(3PH) / 1.5HP(1PH)
Speed range 15,38,61,84 MPM
Packing size 182cmx75cmx106cm
Net weight 280Kgs
Gross weight 330Kgs

Feature
● Designed for accurate 90 degrees cutting
● Raising saw frame manually
FHBS-J916 ● Vise swivel 45 degrees

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Coolant System ● Work Lamp ● Blade Tension Gauge
● M42 bi-Metal Saw Blade-1 pc ● Automatic Saw Blade Breakage ● Laser Line Projector
● Toolbox and Maintenance Tools-1 set Power off System ● Single Roller
● Variable Speed Control Device ● Roller Table (1.5M or 2.0M)

Specifications

Capacity at 90 ● 260mm ■ 260mm
▬ 125x460mm
Capacity at 45 ● 230mm ■ 220mm
vise swivel ▬ 220x230mm
Blade size 27mmx0.9mmx3365mm
Motor 2HP
Speed range 15,38,61,84 MPM
Packing size 188cmx75cmx112cm
Net weight 320Kgs
Gross weight 370Kgs

Feature
● Designed for accurate 90 degrees cutting
● Raising saw frame manually
● Vise swivel 45 degrees
FHBS-J1018M

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Coolant System ● Work Lamp
● M42 bi-Metal Saw Blade-1 pc ● Automatic Saw Blade Breakage ● Blade Tension Gauge
● Toolbox and Maintenance Tools-1 set Power off System ● Laser Line Projector
● Variable Speed Control Device ● Single Roller
● Frequency lnverter ● Roller Table (1.5M or 2.0M)
