Page 256 - metal2022

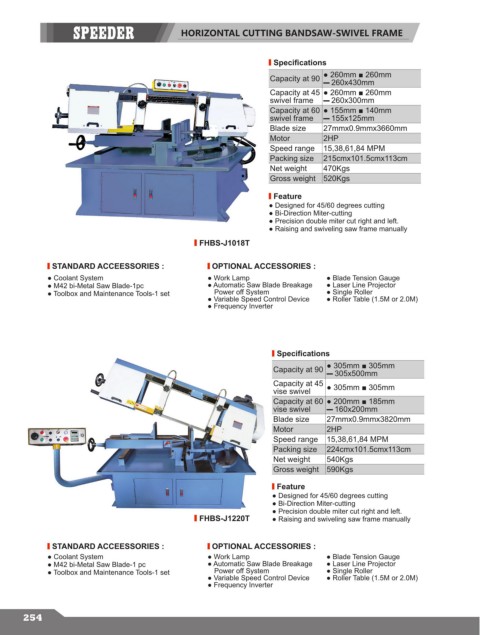

HORIZONTAL CUTTING BANDSAW-SWIVEL FRAME

Specifications

Capacity at 90 ● 260mm ■ 260mm
▬ 260x430mm
Capacity at 45 ● 260mm ■ 260mm
swivel frame ▬ 260x300mm
Capacity at 60 ● 155mm ■ 140mm
swivel frame ▬ 155x125mm
Blade size 27mmx0.9mmx3660mm
Motor 2HP
Speed range 15,38,61,84 MPM
Packing size 215cmx101.5cmx113cm
Net weight 470Kgs
Gross weight 520Kgs
Feature
● Designed for 45/60 degrees cutting
● Bi-Direction Miter-cutting
● Precision double miter cut right and left.
● Raising and swiveling saw frame manually
FHBS-J1018T

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Coolant System ● Work Lamp ● Blade Tension Gauge
● M42 bi-Metal Saw Blade-1pc ● Automatic Saw Blade Breakage ● Laser Line Projector
● Toolbox and Maintenance Tools-1 set Power off System ● Single Roller
● Variable Speed Control Device ● Roller Table (1.5M or 2.0M)
● Frequency Inverter

Specifications
Capacity at 90 ● 305mm ■ 305mm
▬ 305x500mm
Capacity at 45 ● 305mm ■ 305mm
vise swivel
Capacity at 60 ● 200mm ■ 185mm
vise swivel ▬ 160x200mm
Blade size 27mmx0.9mmx3820mm
Motor 2HP
Speed range 15,38,61,84 MPM
Packing size 224cmx101.5cmx113cm
Net weight 540Kgs
Gross weight 590Kgs

Feature
● Designed for 45/60 degrees cutting
● Bi-Direction Miter-cutting
● Precision double miter cut right and left.
FHBS-J1220T ● Raising and swiveling saw frame manually

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Coolant System ● Work Lamp ● Blade Tension Gauge
● M42 bi-Metal Saw Blade-1 pc ● Automatic Saw Blade Breakage ● Laser Line Projector
● Toolbox and Maintenance Tools-1 set Power off System ● Single Roller
● Variable Speed Control Device ● Roller Table (1.5M or 2.0M)
● Frequency Inverter

254
