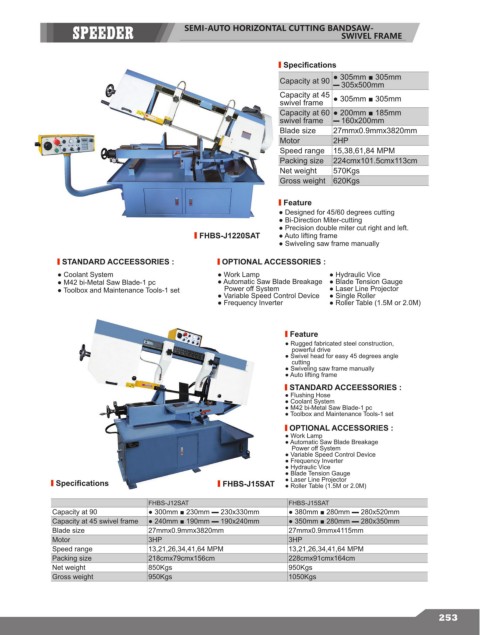

SEMI-AUTO HORIZONTAL CUTTING BANDSAW-
SWIVEL FRAME

Specifications

Capacity at 90 ● 305mm ■ 305mm
▬ 305x500mm
Capacity at 45 ● 305mm ■ 305mm
swivel frame
Capacity at 60 ● 200mm ■ 185mm
swivel frame ▬ 160x200mm
Blade size 27mmx0.9mmx3820mm
Motor 2HP
Speed range 15,38,61,84 MPM
Packing size 224cmx101.5cmx113cm
Net weight 570Kgs
Gross weight 620Kgs

Feature
● Designed for 45/60 degrees cutting
● Bi-Direction Miter-cutting
● Precision double miter cut right and left.
FHBS-J1220SAT ● Auto lifting frame
● Swiveling saw frame manually

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Coolant System ● Work Lamp ● Hydraulic Vice
● M42 bi-Metal Saw Blade-1 pc ● Automatic Saw Blade Breakage ● Blade Tension Gauge
● Toolbox and Maintenance Tools-1 set Power off System ● Laser Line Projector
● Variable Speed Control Device ● Single Roller
● Frequency Inverter ● Roller Table (1.5M or 2.0M)

Feature
● Rugged fabricated steel construction,
powerful drive
● Swivel head for easy 45 degrees angle
cutting
● Swiveling saw frame manually
● Auto lifting frame
STANDARD ACCEESSORIES :
● Flushing Hose
● Coolant System
● M42 bi-Metal Saw Blade-1 pc
● Toolbox and Maintenance Tools-1 set
OPTIONAL ACCESSORIES :
● Work Lamp
● Automatic Saw Blade Breakage
Power off System
● Variable Speed Control Device
● Frequency Inverter
● Hydraulic Vice
● Blade Tension Gauge
Specifications FHBS-J15SAT ● Laser Line Projector
● Roller Table (1.5M or 2.0M)

FHBS-J12SAT FHBS-J15SAT
Capacity at 90 ● 300mm ■ 230mm ▬ 230x330mm ● 380mm ■ 280mm ▬ 280x520mm
Capacity at 45 swivel frame ● 240mm ■ 190mm ▬ 190x240mm ● 350mm ■ 280mm ▬ 280x350mm
Blade size 27mmx0.9mmx3820mm 27mmx0.9mmx4115mm
Motor 3HP 3HP
Speed range 13,21,26,34,41,64 MPM 13,21,26,34,41,64 MPM
Packing size 218cmx79cmx156cm 228cmx91cmx164cm
Net weight 850Kgs 950Kgs
Gross weight 950Kgs 1050Kgs
