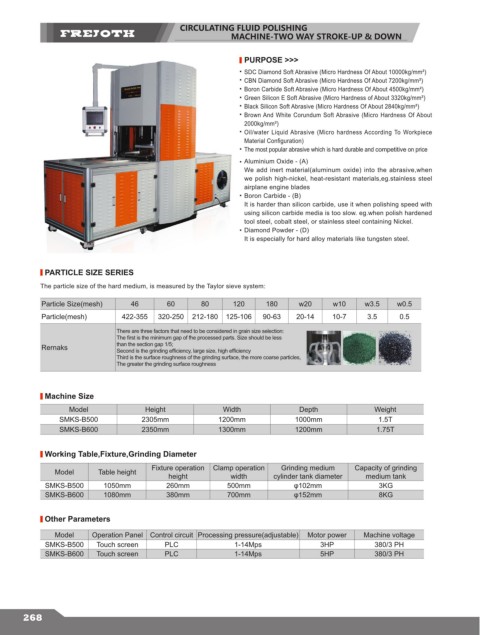

CIRCULATING FLUID POLISHING
MACHINE-TWO WAY STROKE-UP & DOWN

PURPOSE >>>
SDC Diamond Soft Abrasive (Micro Hardness Of About 10000kg/mm²)
CBN Diamond Soft Abrasive (Micro Hardness Of About 7200kg/mm²)
Boron Carbide Soft Abrasive (Micro Hardness Of About 4500kg/mm²)
Green Silicon E Soft Abrasive (Micro Hardness of About 3320kg/mm²)
Black Silicon Soft Abrasive (Micro Hardness Of About 2840kg/mm²)
Brown And White Corundum Soft Abrasive (Micro Hardness Of About
2000kg/mm²)
Oil/water Liquid Abrasive (Micro hardness According To Workpiece
Material Configuration)
The most popular abrasive which is hard durable and competitive on price
Aluminium Oxide - (A)
We add inert material(aluminum oxide) into the abrasive,when
we polish high-nickel, heat-resistant materials,eg.stainless steel
airplane engine blades
Boron Carbide - (B)
It is harder than silicon carbide, use it when polishing speed with
using silicon carbide media is too slow. eg.when polish hardened
tool steel, cobalt steel, or stainless steel containing Nickel.
Diamond Powder - (D)
It is especially for hard alloy materials like tungsten steel.

PARTICLE SIZE SERIES

The particle size of the hard medium, is measured by the Taylor sieve system:

Particle Size(mesh) 46 60 80 120 180 w20 w10 w3.5 w0.5
Particle(mesh) 422-355 320-250 212-180 125-106 90-63 20-14 10-7 3.5 0.5
There are three factors that need to be considered in grain size selection:
The first is the minimum gap of fhe processed parts. Size should be less
Rernaks than the section gap 1/5;
Second is the grinding efficiency, large size, high efficiency
Third is the surface roughness of the grinding surface, the more coarse particles,
The greater the grinding surface roughness

Machine Size

Model Height Width Depth Weight
SMKS-B500 2305mm 1200mm 1000mm 1.5T
SMKS-B600 2350mm 1300mm 1200mm 1.75T

Working Table,Fixture,Grinding Diameter
Fixture operation Clamp operation Grinding medium Capacity of grinding
Model Table height
height width cylinder tank diameter medium tank
SMKS-B500 1050mm 260mm 500mm φ102mm 3KG
SMKS-B600 1080mm 380mm 700mm φ152mm 8KG

Other Parameters

Model Operation Panel Control circuit Processing pressure(adjustable) Motor power Machine voltage
SMKS-B500 Touch screen PLC 1-14Mps 3HP 380/3 PH
SMKS-B600 Touch screen PLC 1-14Mps 5HP 380/3 PH
