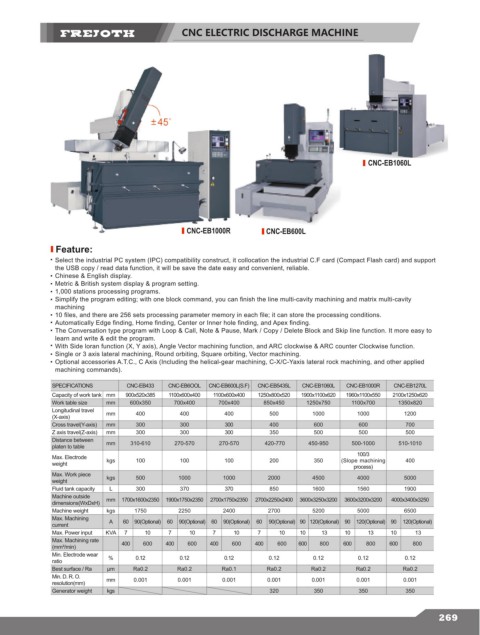

CNC ELECTRIC DISCHARGE MACHINE



















                                                                                               CNC-EB1060L









                                                 CNC-EB1000R         CNC-EB600L

               Feature:
               Select the industrial PC system (IPC) compatibility construct, it collocation the industrial C.F card (Compact Flash card) and support
               the USB copy / read data function, it will be save the date easy and convenient, reliable.
               Chinese & English display.
               Metric & British system display & program setting.
               1,000 stations processing programs.
               Simplify the program editing; with one block command, you can finish the line multi-cavity machining and matrix multi-cavity
               machining
               10 files, and there are 256 sets processing parameter memory in each file; it can store the processing conditions.
               Automatically Edge finding, Home finding, Center or Inner hole finding, and Apex finding.
               The Conversation type program with Loop & Call, Note & Pause, Mark / Copy / Delete Block and Skip line function. It more easy to
               learn and write & edit the program.
               With Side loran function (X, Y axis), Angle Vector machining function, and ARC clockwise & ARC counter Clockwise function.
               Single or 3 axis lateral machining, Round orbiting, Square orbiting, Vector machining.
               Optional accessories A.T.C., C Axis (Including the helical-gear machining, C-X/C-Yaxis lateral rock machining, and other applied
               machining commands).

              SPECIFICATIONS     CNC-EB433  CNC-EB6OOL  CNC-EB600L(S.F)   CNC-EB5435L   CNC-EB1060L  CNC-EB1000R  CNC-EB1270L
              Capacity of work tank mm  900x520x385  1100x600x400  1100x600x400  1250x800x520  1900x1100x620  1960x1100x550  2100x1250x620
              Work table size  mm  600x350   700x400     700x400    850x450    1250x750    1100x700    1350x820
              Longitudinal travel  mm  400     400        400         500        1000       1000        1200
              (X-axis)
              Cross travel(Y-axis)  mm  300    300        300         400        600         600         700
              Z axis travel(Z-axis)  mm  300   300        300         350        500         500         500
              Distance between   mm  310-610  270-570    270-570     420-770    450-950    500-1000    510-1010
              platen to table
                                                                                            100/3
              Max. Electrode   kgs  100        100        100         200        350    (Slope machining   400
              weight                                                                       process)
              Max. Work piece   kgs  500       1000       1000       2000        4500       4000        5000
              weight
              Fluid tank capacity  L  300      370        370         850        1600       1560        1900
              Machine outside   mm  1700x1600x2350  1900x1750x2350  2700x1750x2350  2700x2250x2400  3600x3250x3200  3600x3200x3200  4000x3400x3250
              dimensions(WxDxH)
              Machine weight  kgs  1750        2250       2400       2700        5200       5000        6500
              Max. Machining   A  60  90(Optional)  60  90(Optional)  60  90(Optional)  60  90(Optional) 90 120(Optional)  90  120(Optional) 90  120(Optional)
              current
              Max. Power input  KVA  7  10  7    10    7     10    7    10    10   13    10    13    10     13
              Max. Machining rate
              (mm³ /min)        400  600   400   600   400  600   400   600  600   800   600  800   600   800
              Min. Electrode wear   %  0.12    0.12       0.12        0.12       0.12       0.12        0.12
              ratio
              Best surface / Ra  μm  Ra0.2    Ra0.2       Ra0.1      Ra0.2      Ra0.2       Ra0.2       Ra0.2
              Min. D. R. O.   mm   0.001      0.001       0.001      0.001       0.001      0.001       0.001
              resolution(mm)
              Generator weight  kgs                                   320        350         350         350
