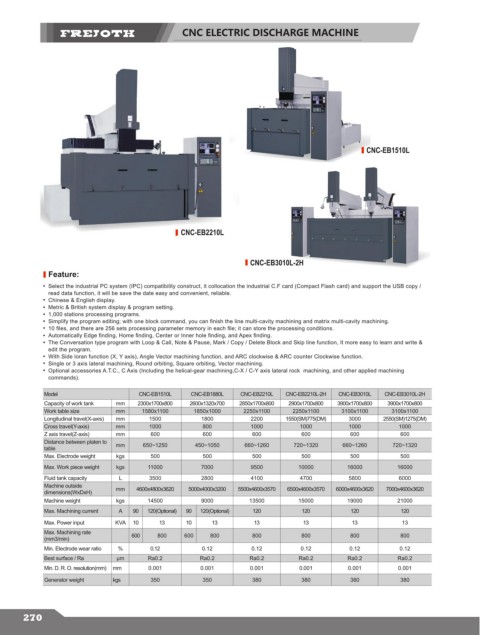

CNC ELECTRIC DISCHARGE MACHINE

















                                                                                               CNC-EB1510L











                                               CNC-EB2210L



                                                                 CNC-EB3010L-2H
             Feature:
             Select the industrial PC system (IPC) compatibility construct, it collocation the industrial C.F card (Compact Flash card) and support the USB copy /
             read data function, it will be save the date easy and convenient, reliable.
             Chinese & English display.
             Metric & British system display & program setting.
             1,000 stations processing programs.
             Simplify the program editing; with one block command, you can finish the line multi-cavity machining and matrix multi-cavity machining.
             10 files, and there are 256 sets processing parameter memory in each file; it can store the processing conditions.
             Automatically Edge finding, Home finding, Center or Inner hole finding, and Apex finding.
             The Conversation type program with Loop & Call, Note & Pause, Mark / Copy / Delete Block and Skip line function, It more easy to learn and write &
             edit the program.
             With Side loran function (X, Y axis), Angle Vector machining function, and ARC clockwise & ARC counter Clockwise function.
             Single or 3 axis lateral machining, Round orbiting, Square orbiting, Vector machining.
             Optional accessories A.T.C., C Axis (Including the helical-gear machining,C-X / C-Y axis lateral rock  machining, and other applied machining
             commands).
            Model                   CNC-EB1510L   CNC-EB1880L  CNC-EB2210L  CNC-EB2210L-2H  CNC-EB3010L  CNC-EB3010L-2H
            Capacity of work tank  mm  2300x1700x800  2600x1320x700  2850x1700x800  2900x1700x800  3900x1700x800  3900x1700x800
            Work table size   mm     1580x1100    1850x1000    2250x1100    2250x1100   3100x1100    3100x1100
            Longitudinal travel(X-axis)  mm  1500   1800         2200     1550(SM)775(DM)  3000    2550(SM)1275(DM)
            Cross travel(Y-axis)  mm   1000          800         1000         1000        1000         1000
            Z axis travel(Z-axis)  mm  600           600         600          600         600          600
            Distance between platen to
            table              mm    650~1250      450~1050    660~1260     720~1320    660~1260     720~1320
            Max. Electrode weight  kgs  500          500         500          500         500          500
            Max. Work piece weight  kgs  11000      7000         9500        10000        16000       16000
            Fluid tank capacity  L     3500         2800         4100         4700        5800         6000
            Machine outside    mm   4600x4800x3620  5000x4000x3200  5500x4600x3570  6500x4600x3570  6000x4600x3620  7000x4600x3620
            dimensions(WxDxH)
            Machine weight     kgs     14500        9000         13500       15000        19000       21000
            Max. Machining current  A  90  120(Optional)  90  120(Optional)  120  120      120         120
            Max. Power input  KVA  10     13    10     13         13          13           13           13
            Max. Machining rate    600   800    600    800       800          800         800          800
            (mm 3/min)
            Min. Electrode wear ratio  %  0.12       0.12        0.12         0.12        0.12         0.12
            Best surface / Ra  μm      Ra0.2        Ra0.2        Ra0.2       Ra0.2        Ra0.2        Ra0.2
            Min. D. R. O. resolution(mm)  mm  0.001  0.001       0.001       0.001        0.001        0.001
            Generator weight  kgs      350           350         380          380         380          380
