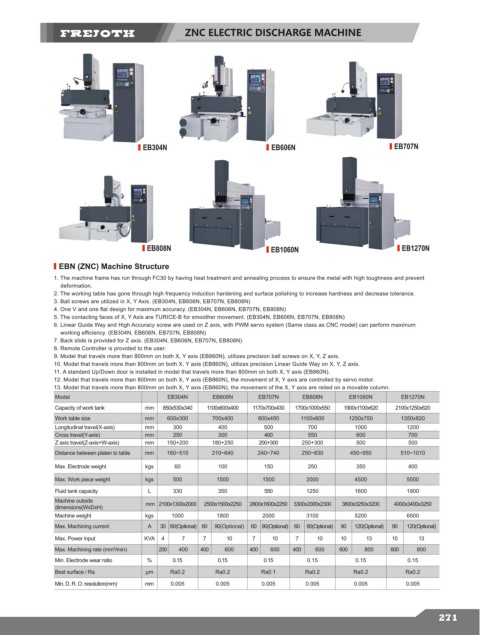

ZNC ELECTRIC DISCHARGE MACHINE

EB304N EB606N EB707N

EB808N EB1060N EB1270N

EBN (ZNC) Machine Structure
1. The machine frame has run through FC30 by having heat treatment and annealing process to ensure the metal with high toughness and prevent
deformation.
2. The working table has gone through high frequency induction hardening and surface polishing to increase hardness and decrease tolerance.
3. Ball screws are utilized in X, Y Axis. (EB304N, EB606N, EB707N, EB808N)
4. One V and one flat design for maximum accuracy. (EB304N, EB606N, EB707N, EB808N)
5. The contacting faces of X, Y Axis are TURICE-B for smoother movement. (EB304N, EB606N, EB707N, EB808N)
6. Linear Guide Way and High Accuracy screw are used on Z axis, with PWM servo system (Same class as CNC model) can perform maximum
working efficiency. (EB304N, EB606N, EB707N, EB808N)
7. Back slide is provided for Z axis. (EB304N, EB606N, EB707N, EB808N)
8. Remote Controller is provided to the user.
9. Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision ball screws on X, Y, Z axis.
10. Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision Linear Guide Way on X, Y, Z axis.
11. A standard Up/Down door is installed in model that travels more than 800mm on both X, Y axis (EB860N).
12. Model that travels more than 800mm on both X, Y axis (EB860N), the movement of X, Y axis are controlled by servo motor.
13. Model that travels more than 800mm on both X, Y axis (EB860N), the movement of the X, Y axis are relied on a movable column.
Model EB304N EB606N EB707N EB808N EB1060N EB1270N
Capacity of work tank mm 850x530x340 1100x600x400 1170x700x430 1700x1000x550 1900x1100x620 2100x1250x620
Work table size mm 600x300 700x400 800x450 1100x600 1250x750 1350x820
Longitudinal travel(X-axis) mm 300 400 500 700 1000 1200
Cross travel(Y-axis) mm 250 300 400 550 600 700
Z axis travel(Z-axis+W-axis) mm 150+200 180+250 200+300 250+300 500 500
Distance between platen to table mm 160~510 210~640 240~740 250~830 450~950 510~1010
Max. Electrode weight kgs 60 100 150 250 350 400
Max. Work piece weight kgs 500 1500 1500 2000 4500 5000
Fluid tank capacity L 330 350 550 1250 1600 1900
Machine outside mm 2100x1300x2000 2500x1500x2250 2800x1600x2250 3300x2000x2300 3600x3250x3200 4000x3400x3250
dimensions(WxDxH)
Machine weight kgs 1000 1800 2000 3100 5200 6500
Max. Machining current A 30 60(Optional) 60 90(Optional) 60 90(Optional) 60 90(Optional) 90 120(Optional) 90 120(Optional)
Max. Power input KVA 4 7 7 10 7 10 7 10 10 13 10 13
Max. Machining rate (mm ³/min) 200 400 400 600 400 600 400 600 600 800 600 800
Min. Electrode wear ratio % 0.15 0.15 0.15 0.15 0.15 0.15
Best surface / Ra μm Ra0.2 Ra0.2 Ra0.1 Ra0.2 Ra0.2 Ra0.2
Min. D. R. O. resolution(mm) mm 0.005 0.005 0.005 0.005 0.005 0.005
