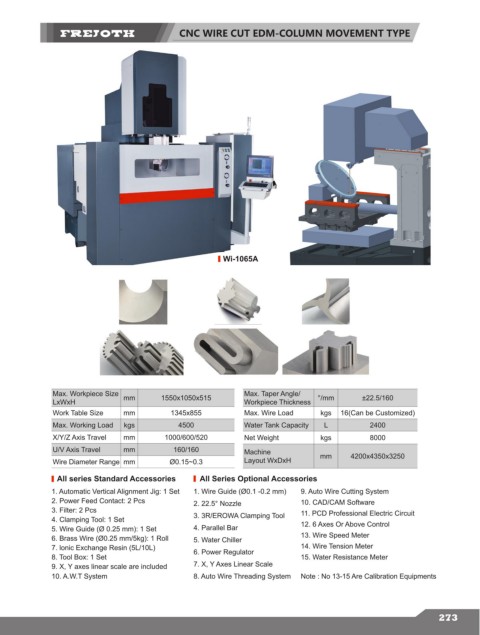

CNC WIRE CUT EDM-COLUMN MOVEMENT TYPE

Wi-1065A

Max. Workpiece Size mm 1550x1050x515 Max. Taper Angle/ °/mm ±22.5/160
LxWxH Workpiece Thickness
Work Table Size mm 1345x855 Max. Wire Load kgs 16(Can be Customized)
Max. Working Load kgs 4500 Water Tank Capacity L 2400
X/Y/Z Axis Travel mm 1000/600/520 Net Weight kgs 8000
U/V Axis Travel mm 160/160 Machine
Wire Diameter Range mm Ø0.15~0.3 Layout WxDxH mm 4200x4350x3250

All series Standard Accessories All Series Optional Accessories
1. Automatic Vertical Alignment Jig: 1 Set 1. Wire Guide (Ø0.1 -0.2 mm) 9. Auto Wire Cutting System
2. Power Feed Contact: 2 Pcs 2. 22.5° Nozzle 10. CAD/CAM Software
3. Filter: 2 Pcs 11. PCD Professional Electric Circuit
4. Clamping Tool: 1 Set 3. 3R/EROWA Clamping Tool 12. 6 Axes Or Above Control
5. Wire Guide (Ø 0.25 mm): 1 Set 4. Parallel Bar
6. Brass Wire (Ø0.25 mm/5kg): 1 Roll 5. Water Chiller 13. Wire Speed Meter
7. lonic Exchange Resin (5L/10L) 6. Power Regulator 14. Wire Tension Meter
8. Tool Box: 1 Set 15. Water Resistance Meter
9. X, Y axes linear scale are included 7. X, Y Axes Linear Scale
10. A.W.T System 8. Auto Wire Threading System Note : No 13-15 Are Calibration Equipments
