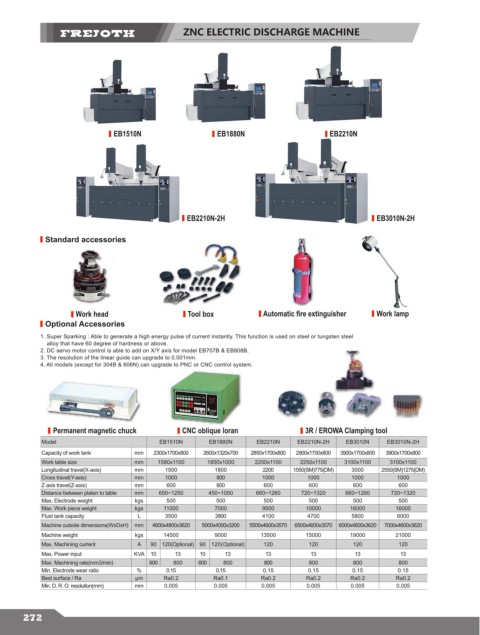

ZNC ELECTRIC DISCHARGE MACHINE

EB1510N EB1880N EB2210N

EB2210N-2H EB3010N-2H

Standard accessories

Work head Tool box Automatic fire extinguisher Work lamp
Optional Accessories
1. Super Sparking : Able to generate a high energy pulse of current instantly. This function is used on steel or tungsten steel
alloy that have 60 degree of hardness or above.
2. DC servo motor control is able to add on X/Y axis for model EB707B & EB808B.
3. The resolution of the linear guide can upgrade to 0.001mm.
4. All models (except for 304B & 606N) can upgrade to PNC or CNC control system.

Permanent magnetic chuck CNC oblique loran 3R / EROWA Clamping tool
Model EB1510N EB1880N EB2210N EB2210N-2H EB3010N EB3010N-2H
Capacity of work tank mm 2300x1700x800 2600x1320x700 2850x1700x800 2900x1700x800 3900x1700x800 3900x1700x800
Work table size mm 1580x1100 1850x1000 2250x1100 2250x1100 3100x1100 3100x1100
Longitudinal travel(X-axis) mm 1500 1800 2200 1550(SM)775(DM) 3000 2550(SM)1275(DM)
Cross travel(Y-axis) mm 1000 800 1000 1000 1000 1000
Z axis travel(Z-axis) mm 600 600 600 600 600 600
Distance between platen to table mm 650~1250 450~1050 660~1260 720~1320 660~1260 720~1320
Max. Electrode weight kgs 500 500 500 500 500 500
Max. Work piece weight kgs 11000 7000 9500 10000 16000 16000
Fluid tank capacity L 3500 2800 4100 4700 5800 6000
Machine outside dimensions(WxDxH) mm 4600x4800x3620 5000x4000x3200 5500x4600x3570 6500x4600x3570 6000x4600x3620 7000x4600x3620
Machine weight kgs 14500 9000 13500 15000 19000 21000
Max. Machining current A 90 120(Optional) 90 120(Optional) 120 120 120 120
Max. Power input KVA 10 13 10 13 13 13 13 13
Max. Machining rate(mm 3/min) 600 800 600 800 800 800 800 800
Min. Electrode wear ratio % 0.15 0.15 0.15 0.15 0.15 0.15
Best surface / Ra μm Ra0.2 Ra0.1 Ra0.2 Ra0.2 Ra0.2 Ra0.2
Min. D. R. O. resolution(mm) mm 0.005 0.005 0.005 0.005 0.005 0.005
