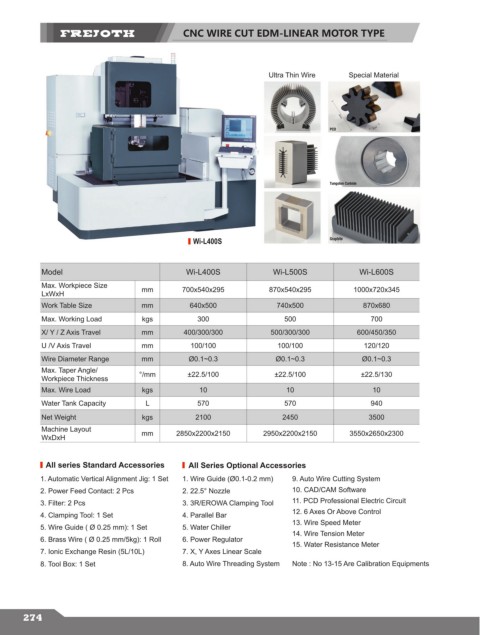

CNC WIRE CUT EDM-LINEAR MOTOR TYPE

Ultra Thin Wire Special Material

Wi-L400S

Model Wi-L400S Wi-L500S Wi-L600S

Max. Workpiece Size
LxWxH mm 700x540x295 870x540x295 1000x720x345
Work Table Size mm 640x500 740x500 870x680
Max. Working Load kgs 300 500 700
X/ Y / Z Axis Travel mm 400/300/300 500/300/300 600/450/350
U /V Axis Travel mm 100/100 100/100 120/120
Wire Diameter Range mm Ø0.1~0.3 Ø0.1~0.3 Ø0.1~0.3
Max. Taper Angle/ °/mm ±22.5/100 ±22.5/100 ±22.5/130
Workpiece Thickness
Max. Wire Load kgs 10 10 10
Water Tank Capacity L 570 570 940
Net Weight kgs 2100 2450 3500
Machine Layout
WxDxH mm 2850x2200x2150 2950x2200x2150 3550x2650x2300

All series Standard Accessories All Series Optional Accessories

1. Automatic Vertical Alignment Jig: 1 Set 1. Wire Guide (Ø0.1-0.2 mm) 9. Auto Wire Cutting System
2. Power Feed Contact: 2 Pcs 2. 22.5° Nozzle 10. CAD/CAM Software
3. Filter: 2 Pcs 3. 3R/EROWA Clamping Tool 11. PCD Professional Electric Circuit
4. Clamping Tool: 1 Set 4. Parallel Bar 12. 6 Axes Or Above Control
5. Wire Guide ( Ø 0.25 mm): 1 Set 5. Water Chiller 13. Wire Speed Meter
6. Brass Wire ( Ø 0.25 mm/5kg): 1 Roll 6. Power Regulator 14. Wire Tension Meter
15. Water Resistance Meter
7. Ionic Exchange Resin (5L/10L) 7. X, Y Axes Linear Scale
8. Tool Box: 1 Set 8. Auto Wire Threading System Note : No 13-15 Are Calibration Equipments
